123 - Codo variable (40° - 70°)

123 - Codo variable (40° - 70°)

Junta de ángulo variable de 40 ° a 70 °, a menudo se usa para unir el riel superior de la escalera a la posición vertical en el extremo superior de la escalera.

Variable 40° to 70° angle joint, often used to join staircase top rail to upright at top end of staircase.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

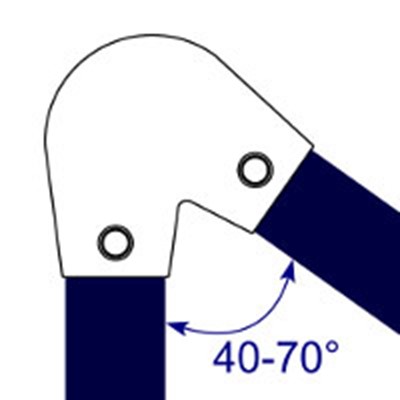

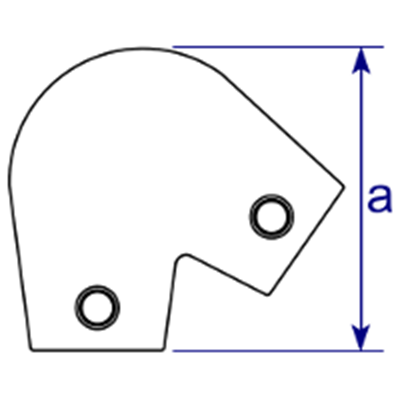

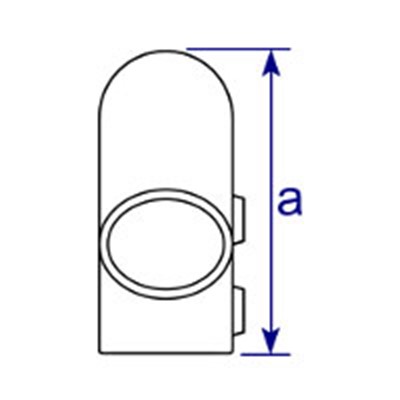

Dimensions Image 1 - 123 - Codo variable (40° - 70°)
Dimensions Image 2 - 123 - Codo variable (40° - 70°)
Dimensions Image 3 - 123 - Codo variable (40° - 70°)
Tamaño Peso (kg) Box Qty* Part No
  B34   0.57   35   123-B34
  C42   0.89   25   123-C42
  D48   1.15   15   123-D48

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

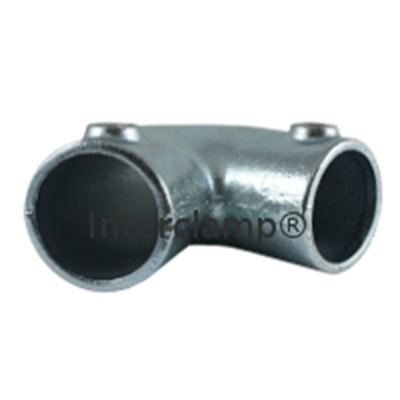

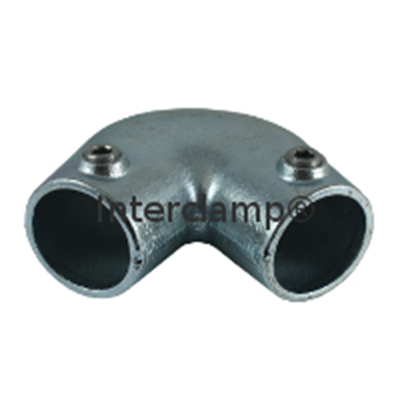

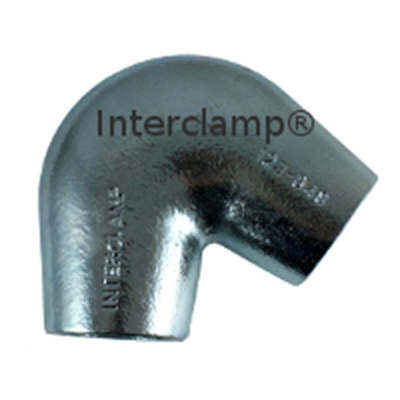

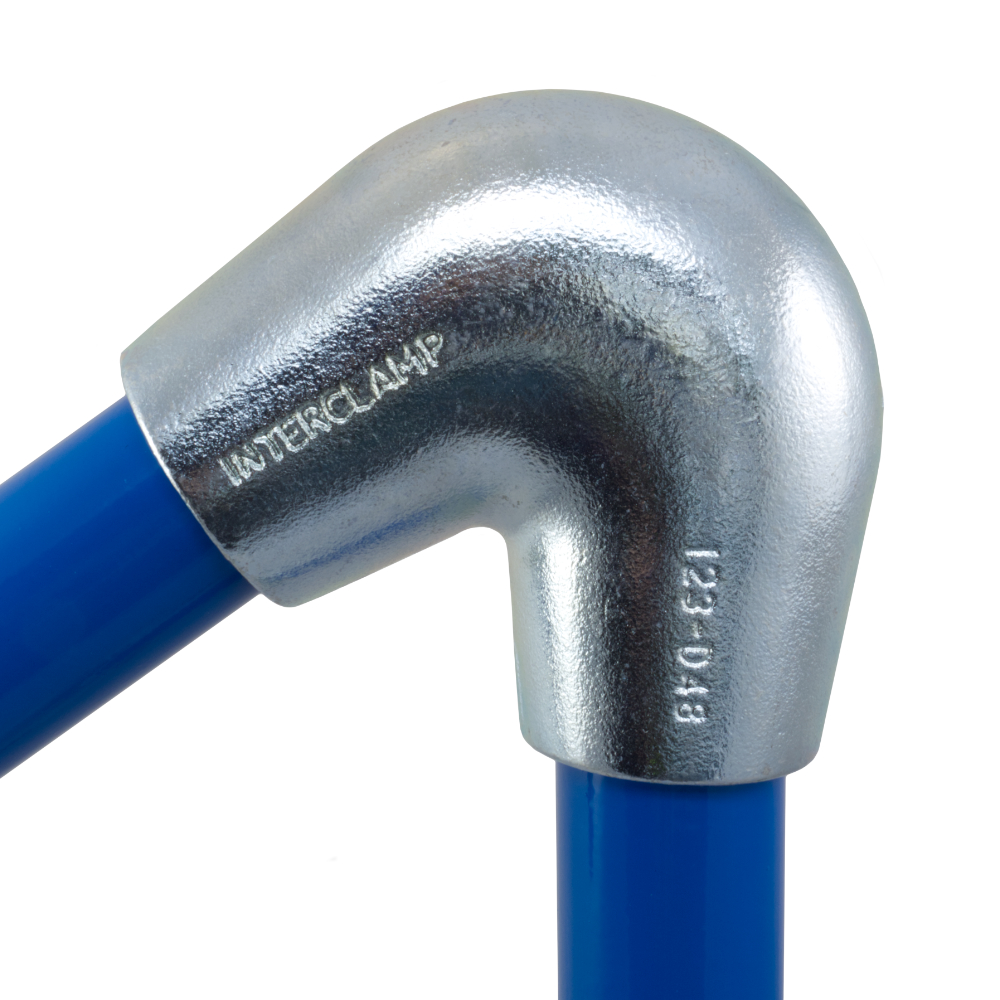

Product Images 1 - 123 - Codo variable (40° - 70°)
Product Images 2 - 123 - Codo variable (40° - 70°)
Product Images 3 - 123 - Codo variable (40° - 70°)
