128 - Esquina (riel superior)

128 - Esquina (riel superior)

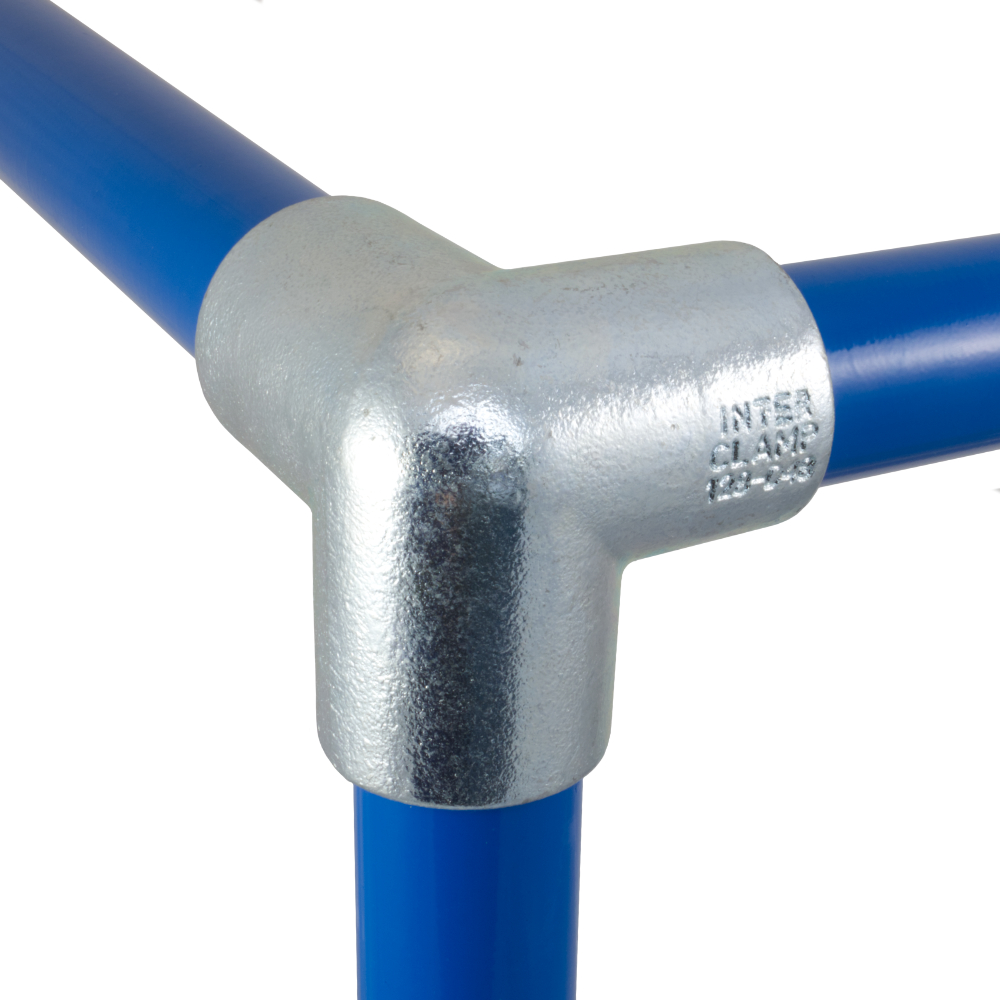

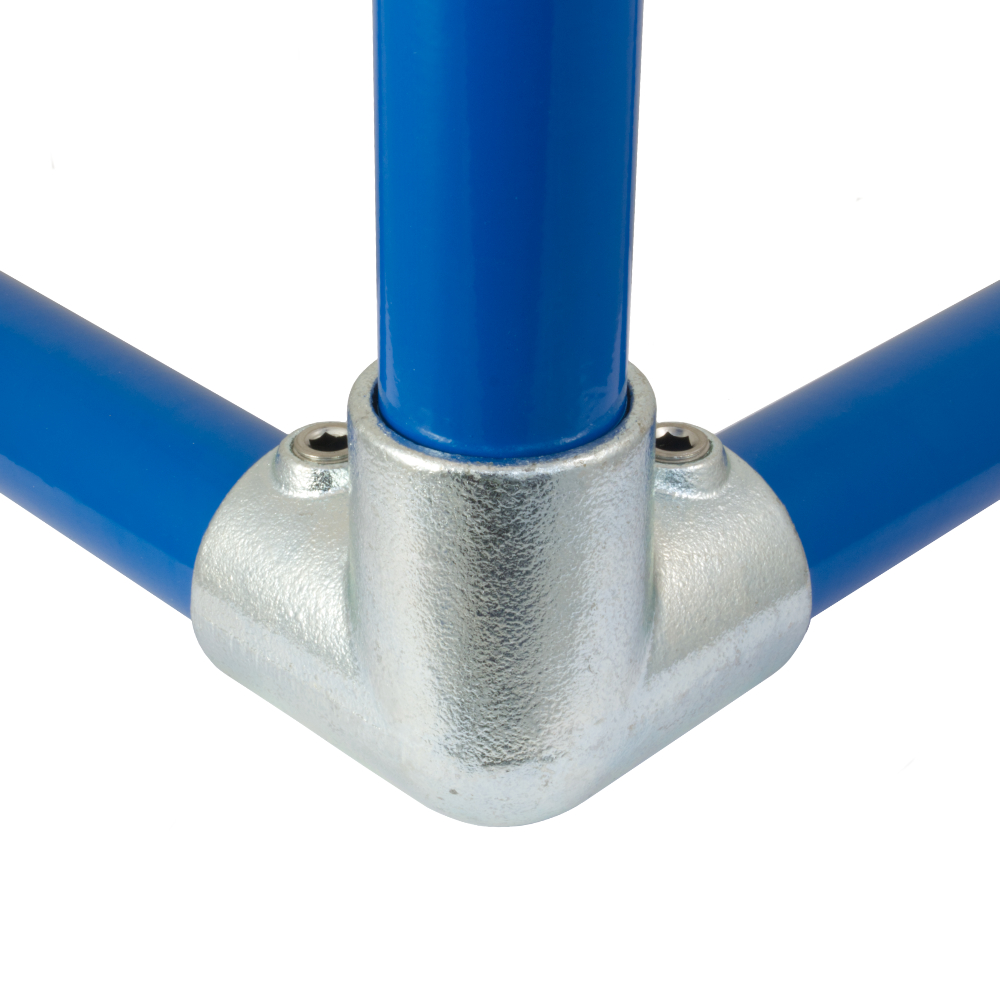

Junta de esquina de 90 °, utilizada a menudo donde la barra superior se encuentra con la esquina vertical en sitios nivelados. A menudo emparejado con el tipo 116.

90° corner joint, often used where top rail meets corner upright on level sites. Often paired with type 116.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

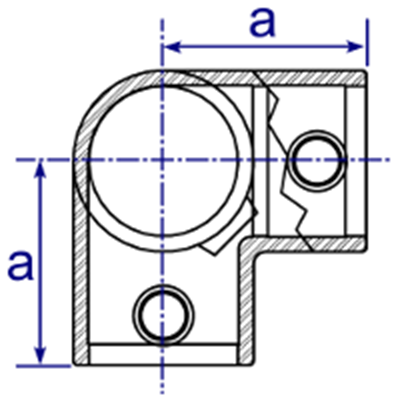

Dimensions Image 1 - 128 - Esquina (riel superior)
Tamaño a (mm) Peso (Kg) Box Qty* GTIN / EAN No
  A27   41   0.37   78   5060511020459
  B34   48   0.51   48   5060511020466
  C42   60   0.78   24   5060511020473
  D48   68   0.97   20   5060511020480
  E60   84   1.73   10   5060511020497

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

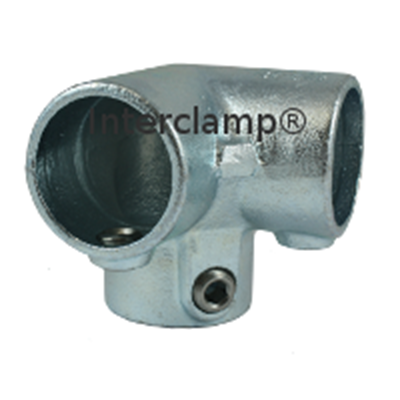

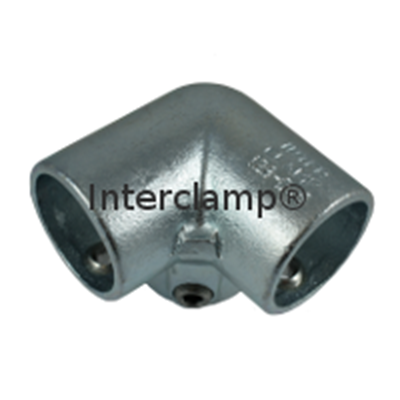

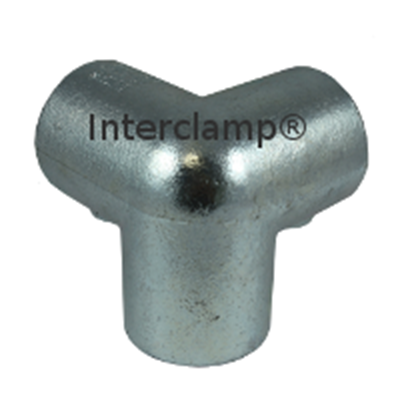

Product Images 1 - 128 - Esquina (riel superior)
