130 - Cruz ajustable (carril medio) (30° - 45°)

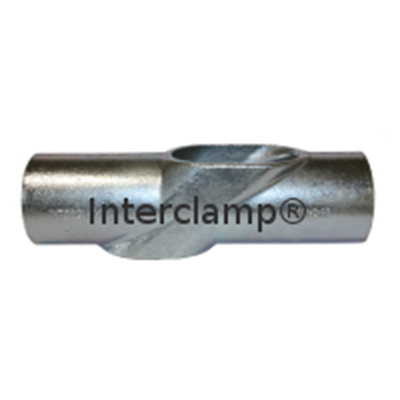

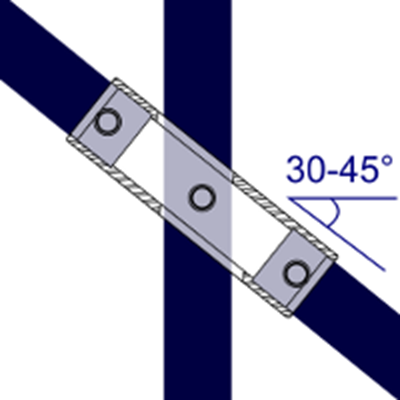

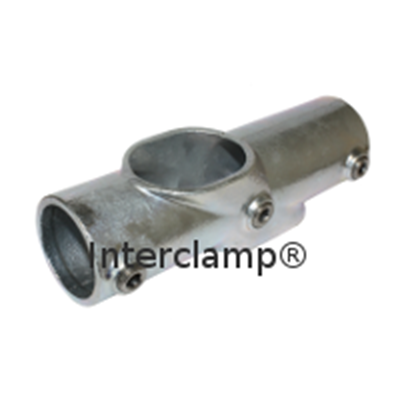

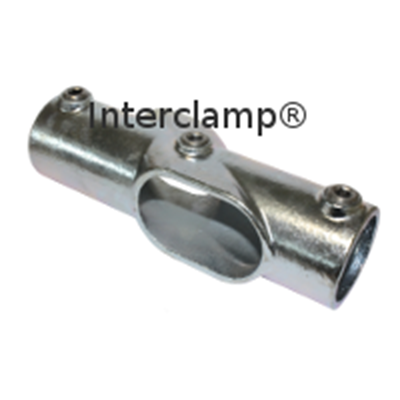

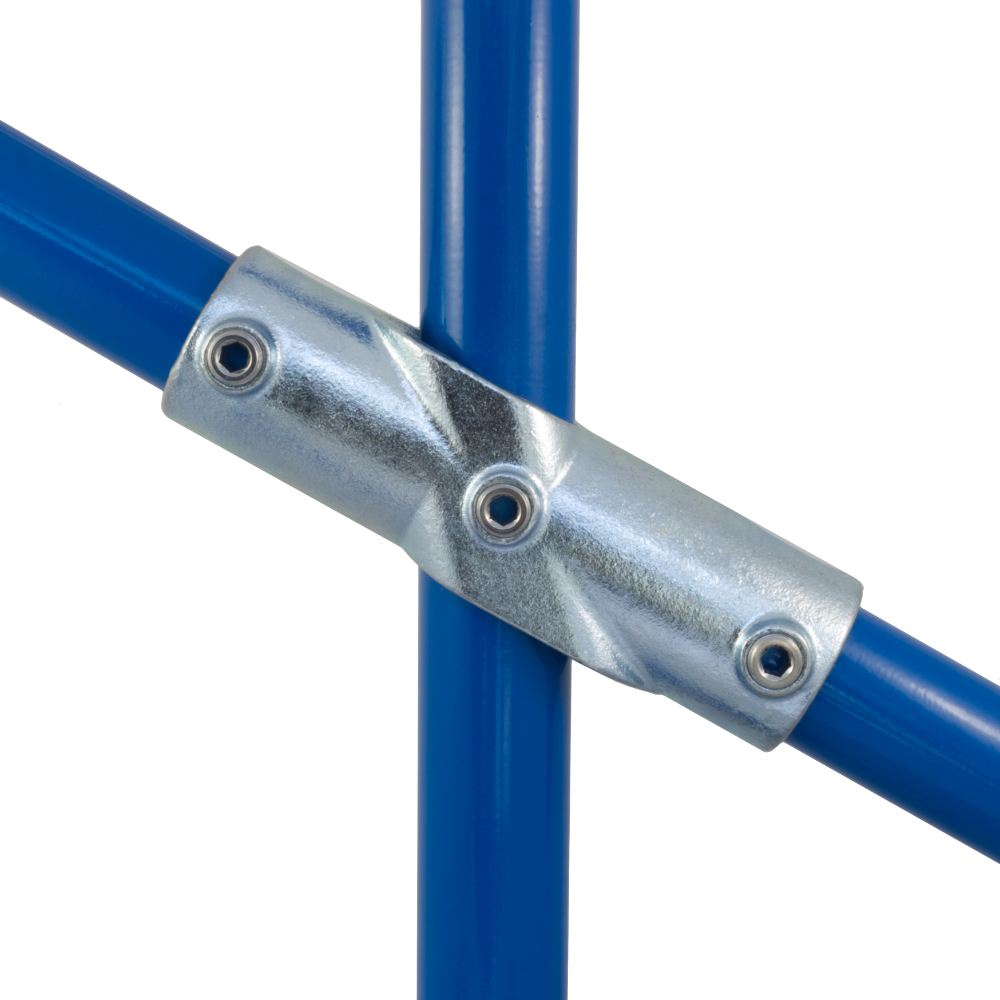

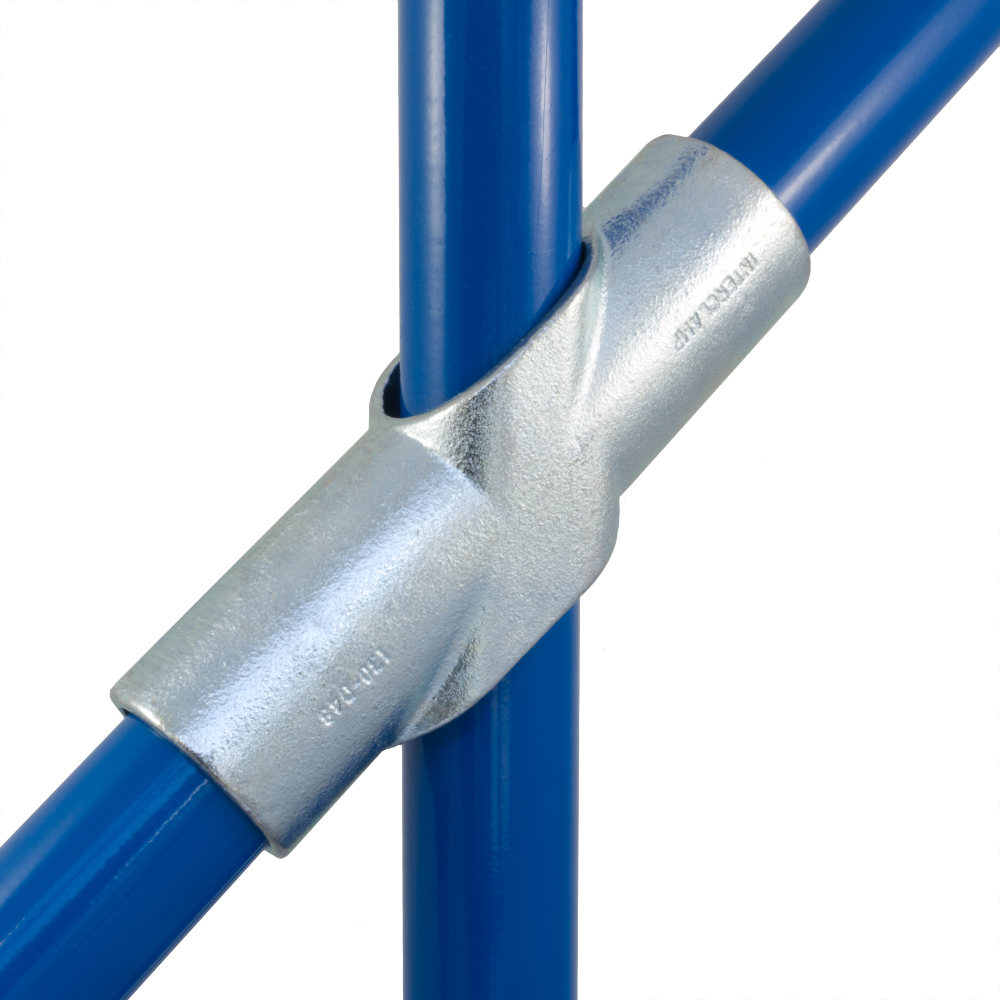

Ajustable de 30 ° a 45 °, este accesorio Interclamp® se usa a menudo cuando los rieles centrales de las escaleras se encuentran con los montantes intermedios. El tubo pasante (vertical en la foto) no se puede unir dentro del accesorio.

Adjustable from 30° to 45°, this Interclamp® fitting is often used where middle rails on staircases meet intermediate uprights. The through tube (vertical in photo) cannot be joined within the fitting.

De datos del producto y dimensiones

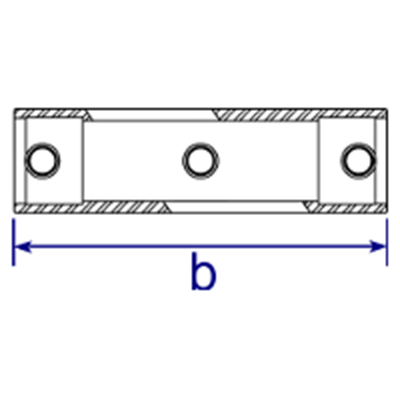

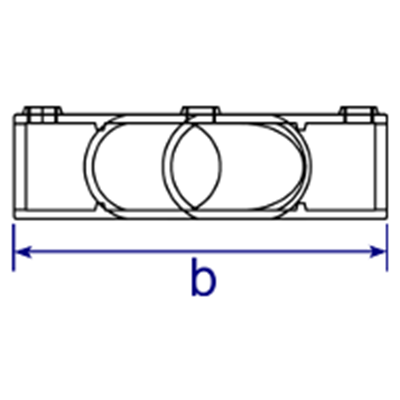

Tamaño b (mm) Peso (kg) Box Qty* Part No
  B34   147   0.64   50   130-B34
  C42   181   1.08   24   130-C42
  D48   217   1.21   20   130-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
