Brida de base, generalmente utilizada para montantes en sitios nivelados. Los orificios de fijación se adaptan a una amplia gama de anclajes de mampostería mecánicos y químicos comunes que deberíamos cotizar a pedido. El tipo 132-D48 está diseñado para cumplir con los requisitos dimensionales de los parapetos definidos por BS7818: 1995 (Sistemas de restricción de peatones en metal).

Advertencia: para lograr las características de carga óptimas, este accesorio debe instalarse de modo que los orificios de fijación estén alineados con la carga aplicada.

Base flange, usually used for uprights on level sites. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. Type 132-D48 is designed to meet the dimensional requirements for parapets as defined by BS7818:1995 (Pedestrian Restraint Systems in Metal).

Warning: To achieve optimum load characteristics, this fitting should be fitted so that the fixing holes are in line with the applied load.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

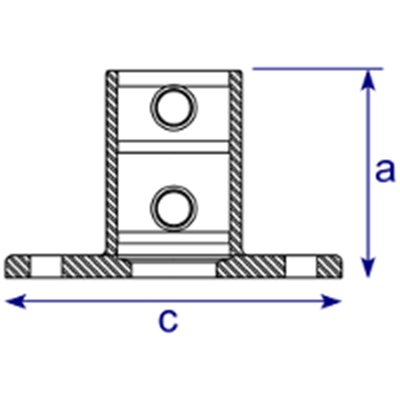

Dimensions Image 1 - 132 - Brida base pasamanos

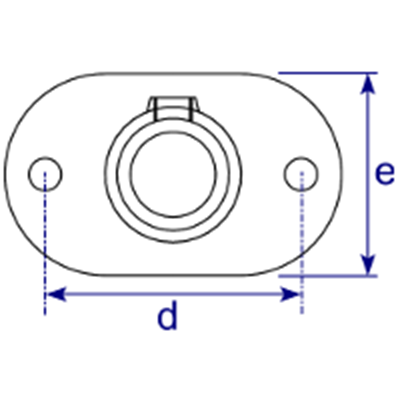

Dimensions Image 2 - 132 - Brida base pasamanos
Tamaño a (mm) c (mm) d (mm) e (mm) Hole Dia (mm) Peso (kg) Box Qty* Part No
  A27   60   105   76   52   11   0.39   80   132-A27
  B34   71   127   89   62   15   0.65   45   132-B34
  C42   84   139   101   72   15   0.88   30   132-C42
  D48   89   152   114   86   15   1.17   23   132-D48
  E60   104   165   127   96   18   1.59   17   132-E60

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

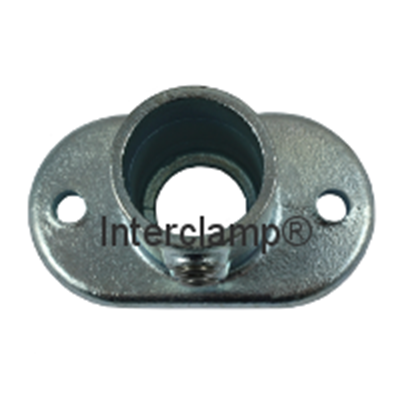

Product Images 1 - 132 - Brida base pasamanos

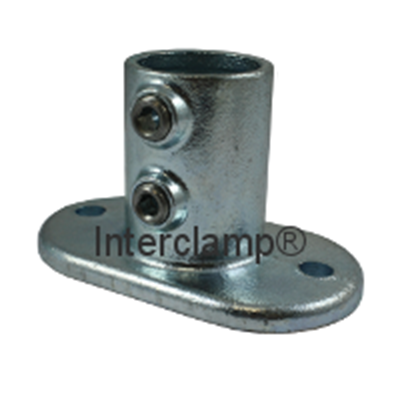

Product Images 2 - 132 - Brida base pasamanos

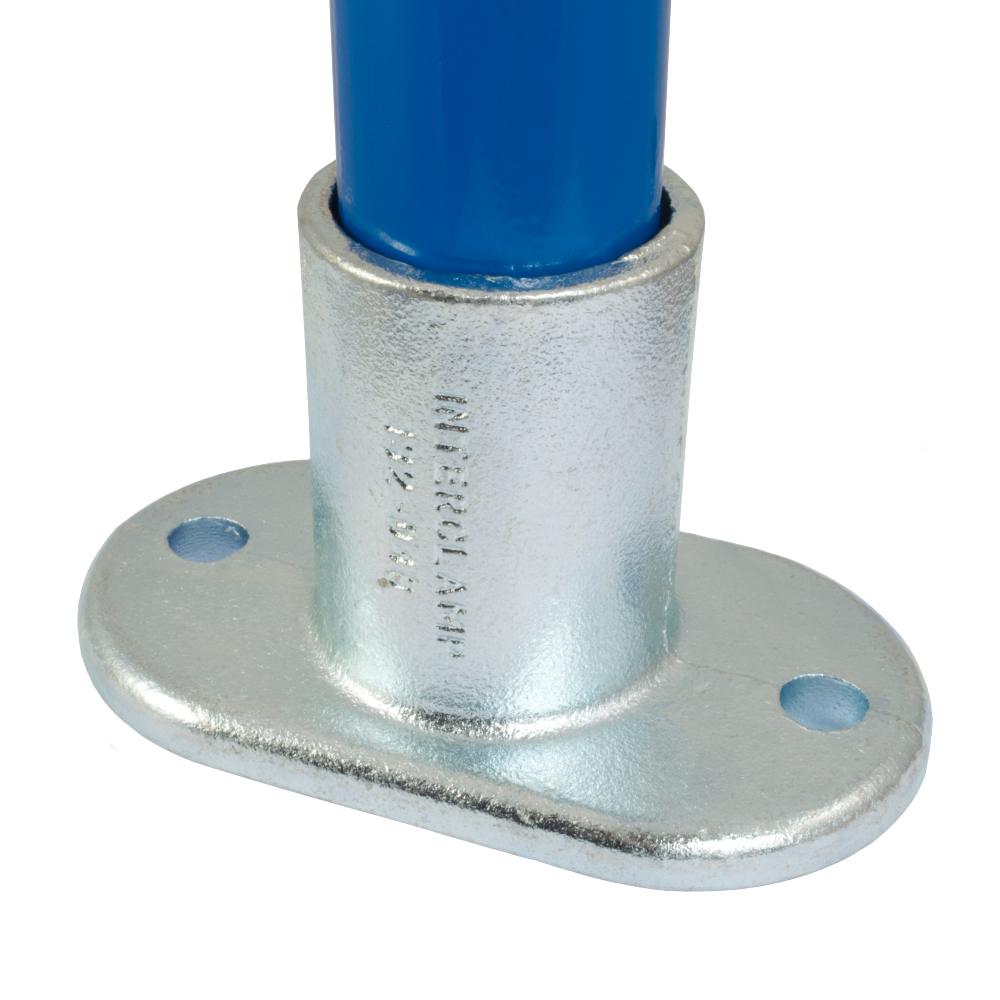

Product Images 3 - 132 - Brida base pasamanos
