133 - Plastic Stop End

133 - Plastic Stop End

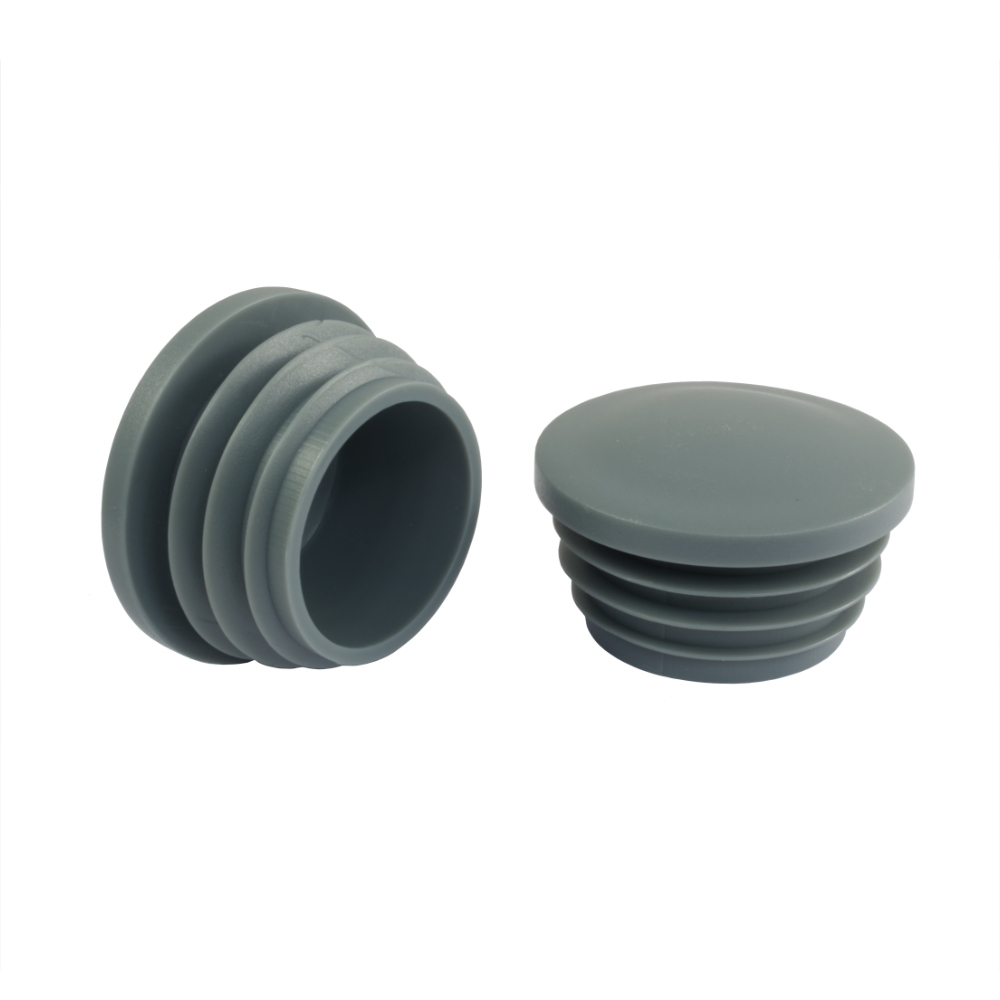

Grey plastic stop end. Only suitable for tubes with similar dimensions to BS EN 10255 (formerly BS 1387) medium weight. Type 333 is an alternative in metal.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

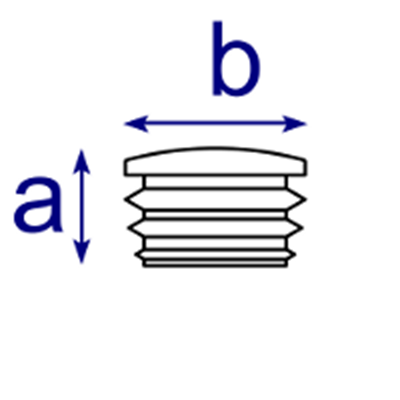

Dimensions Image 1 - 133 - Plastic Stop End
Tamaño Peso (Kg) Box Qty* GTIN / EAN No
  A27   0.01   100   5060511020671
  B34   0.01   100   5060511020688
  C42   0.01   50   5060511020695
  D48   0.01   40   5060511020701
  E60   0.02   25   5060511020718

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
