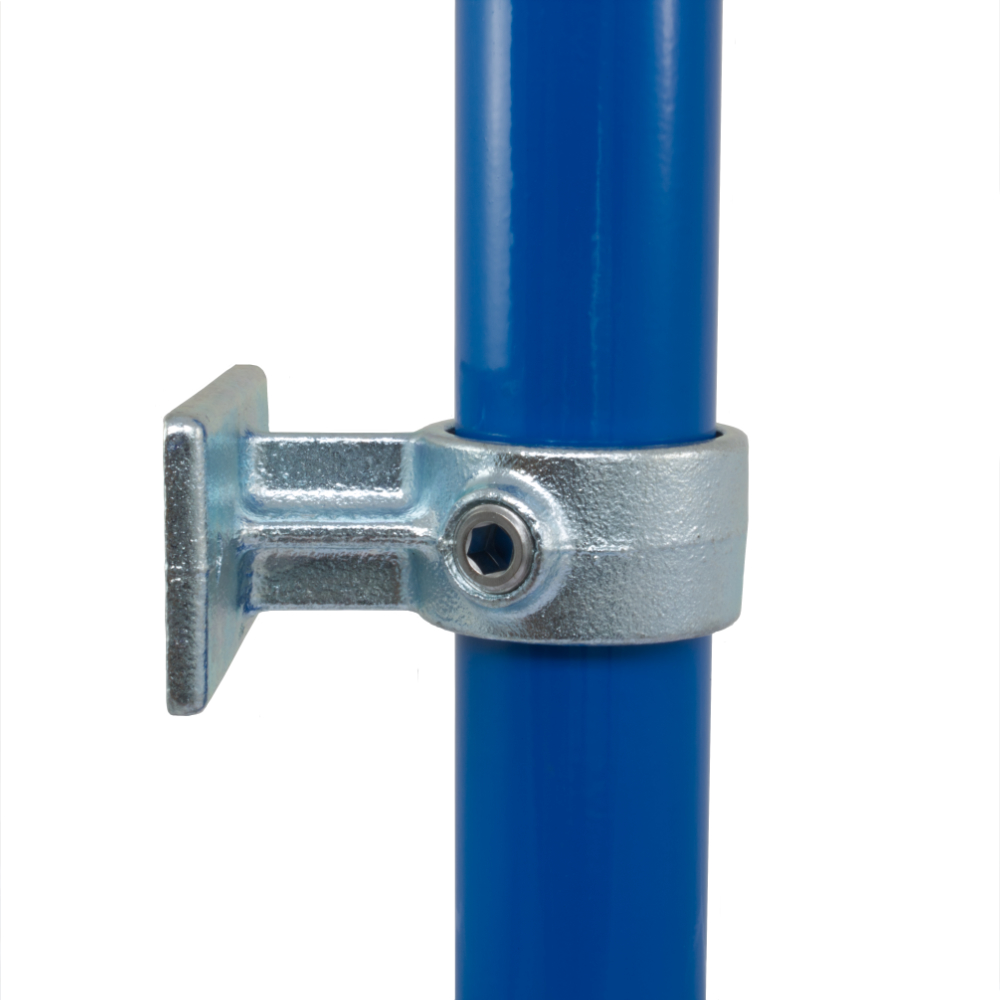

143 - Soporte de pared para pasamanos
A menudo se utiliza para sujetar a las paredes, como una fijación de pared posicional para estructuras, o para fijar placas de apoyo a los montantes. El tubo no se puede unir dentro de la conexión.
Often used to attach to walls, as a positional wall fixing for structures, or to attach kick-plates to uprights. The tube cannot be joined within the fitting.

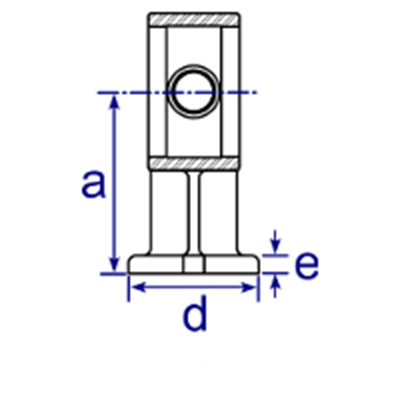

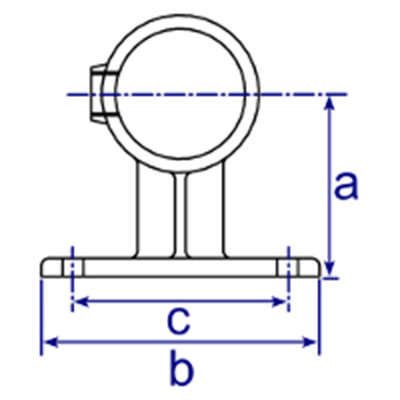

De datos del producto y dimensiones
| Tamaño | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | Hole Dia (mm) | Peso (kg) | Box Qty* | Part No |
| A27 | 54 | 77 | 57 | 44 | 7 | 8 | 0.32 | 100 | 143-A27 |
| B34 | 57 | 80 | 62 | 44 | 7 | 8 | 0.38 | 80 | 143-B34 |
| C42 | 62 | 102 | 82.5 | 45 | 7 | 8 | 0.49 | 57 | 143-C42 |
| D48 | 70 | 107 | 82.5 | 50 | 7 | 8 | 0.60 | 40 | 143-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
