146 - Side Palm

146 - Side Palm

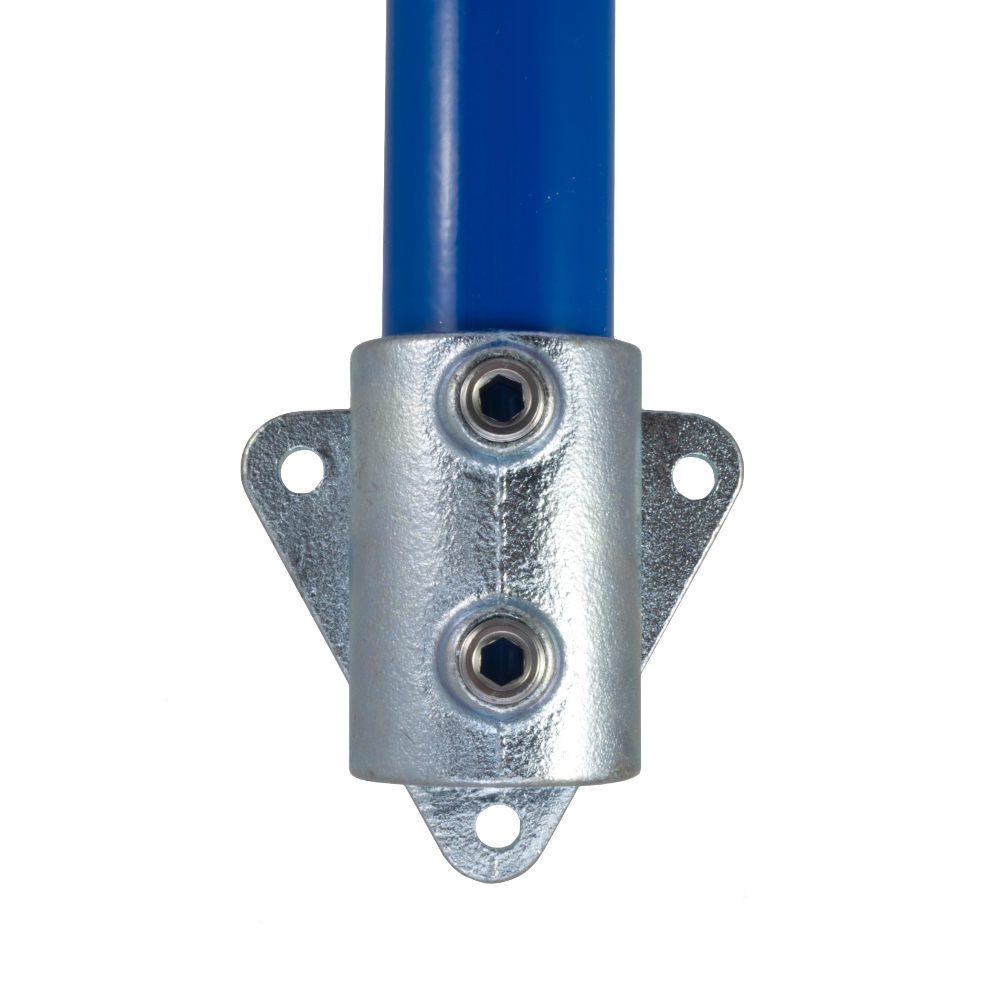

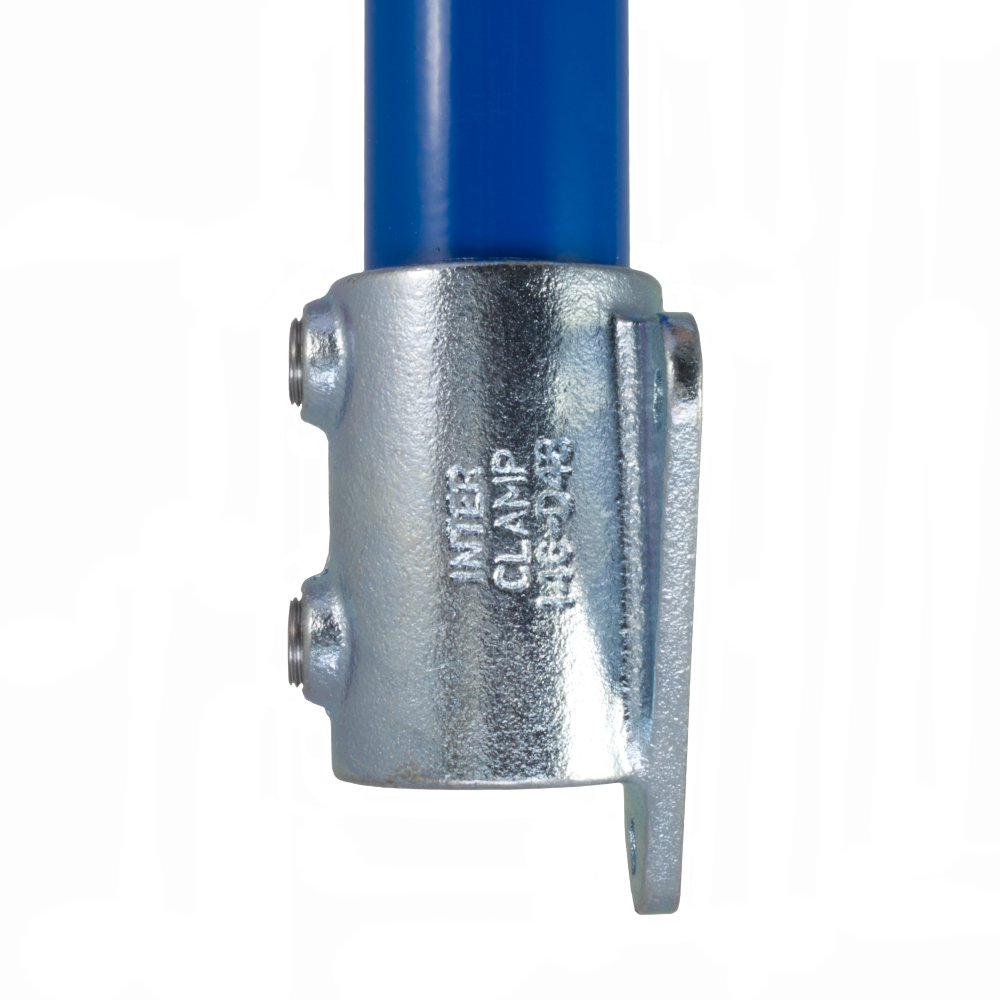

A palm-type fitting, often used to attach guardrail uprights to walls, staircases and ramps. In standard form, the tube cannot pass through the bottom of the fitting, although the fitting may be modified to accommodate this at extra cost (with loss of use of bottom bolt hole).

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

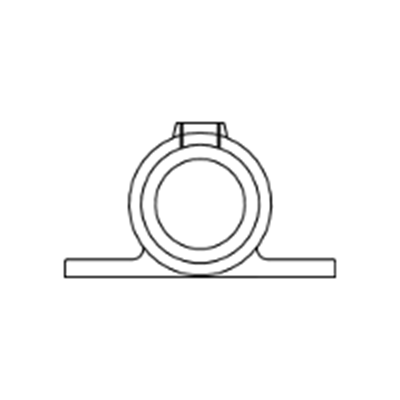

Dimensions Image 1 - 146 - Side Palm

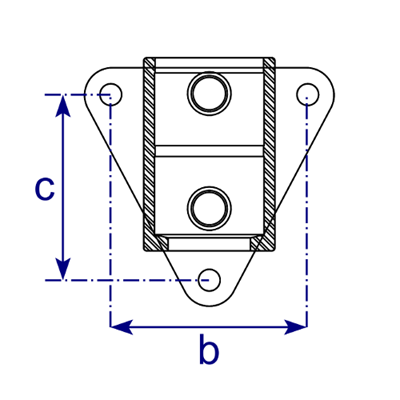

Dimensions Image 2 - 146 - Side Palm
Tamaño b (mm) c (mm) Hole Dia (mm) Peso (Kg) Box Qty* GTIN / EAN No
  B34   68   63   10   0.58   50   5060511021029
  C42   82   71   10   0.76   35   5060511021036
  D48   86   79   10   0.84   28   5060511021043

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
