147 - Giratorio interno Tee

147 - Giratorio interno Tee

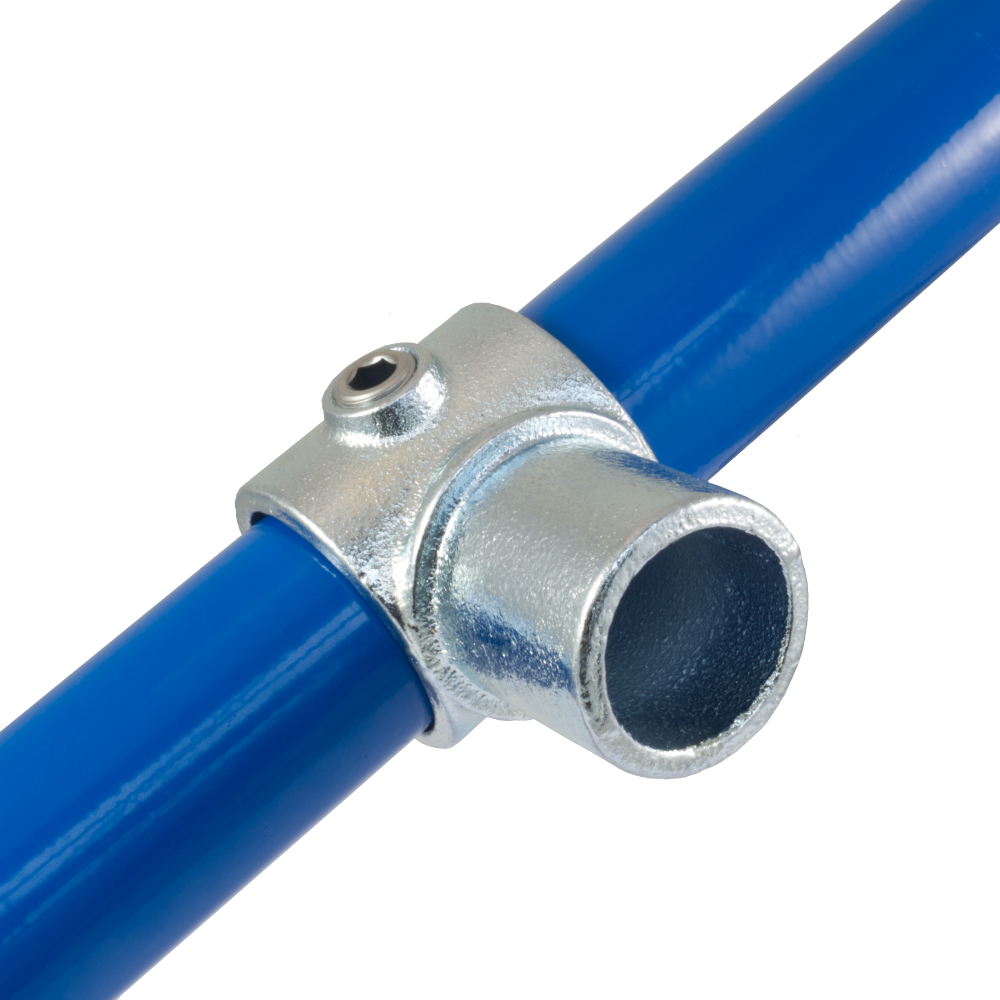

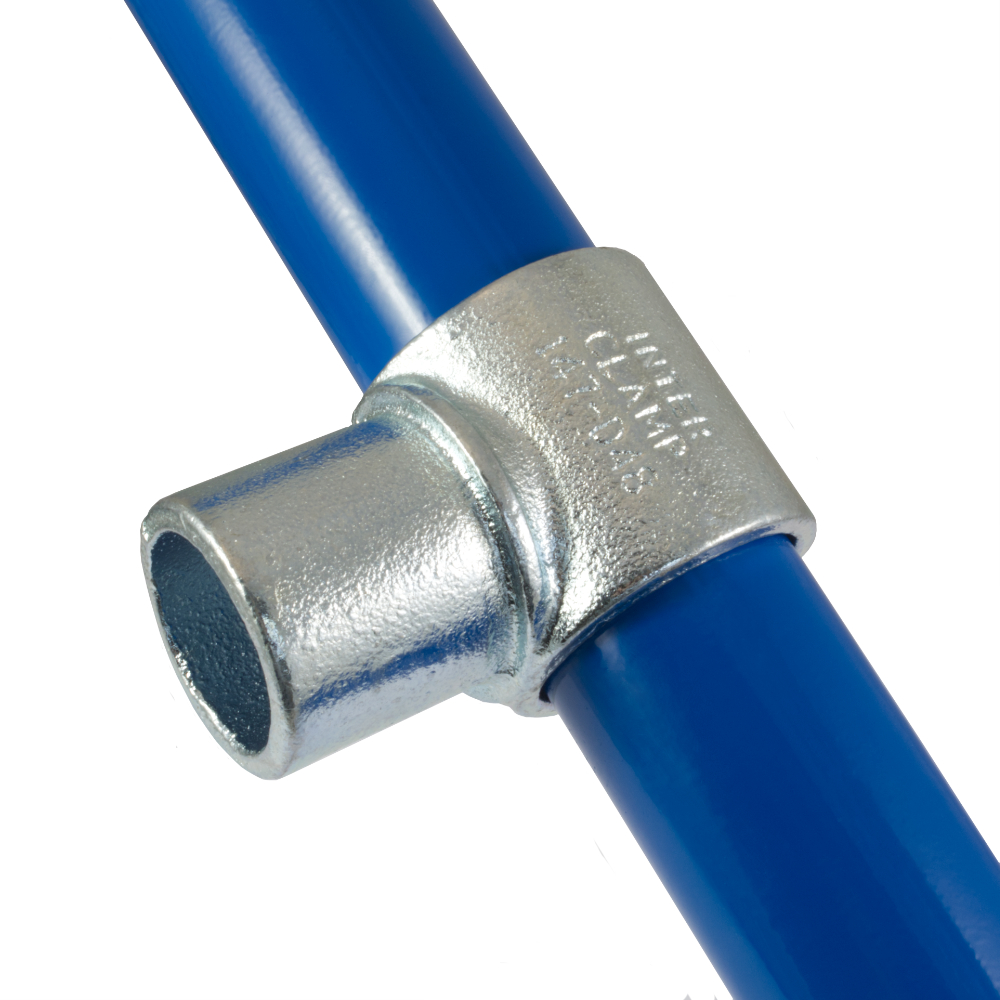

Un accesorio versátil, que se usa a menudo en pendientes y escaleras donde el ángulo varía o es desconocido, y / o donde hay un requisito para que los rieles se desplacen de los montantes. Más comúnmente utilizado con los tipos 101 y 125 para montar rieles inclinados en montantes verticales. El tubo no se puede unir dentro de la conexión.

A versatile fitting, often used on slopes and staircases where the angle either varies or is unknown, and/or where there is a requirement for rails to be offset from uprights. Most commonly used with types 101 and 125 to mount sloping rails onto vertical uprights. The tube cannot be joined within the fitting.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

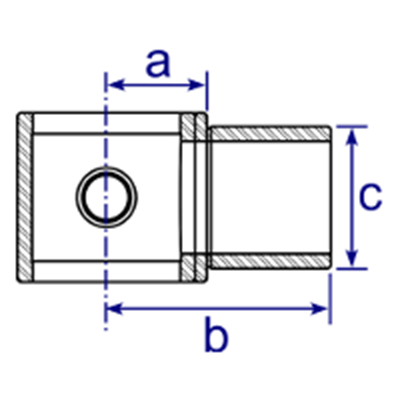

Dimensions Image 1 - 147 - Giratorio interno Tee

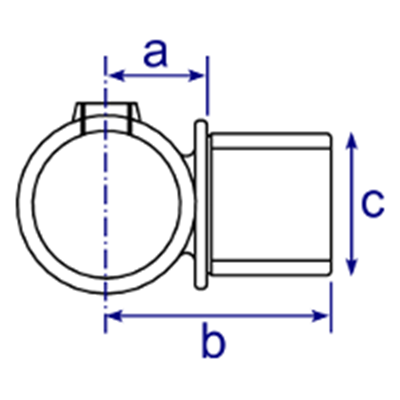

Dimensions Image 2 - 147 - Giratorio interno Tee
Tamaño a (mm) b (mm) c (mm) Peso (kg) Box Qty* Part No
  B34   22   60   34   0.32   96   147-B34
  C42   26   62.5   42   0.46   60   147-C42
  D48   30   72.5   48   0.56   50   147-D48

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
