150 - Internal Expanding Joint

150 - Internal Expanding Joint

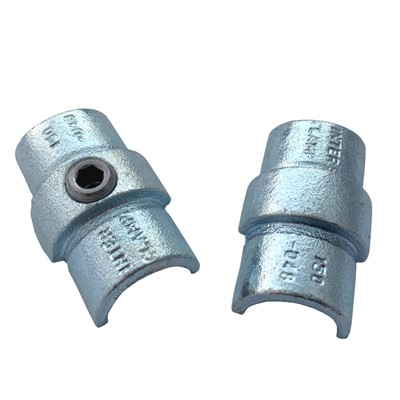

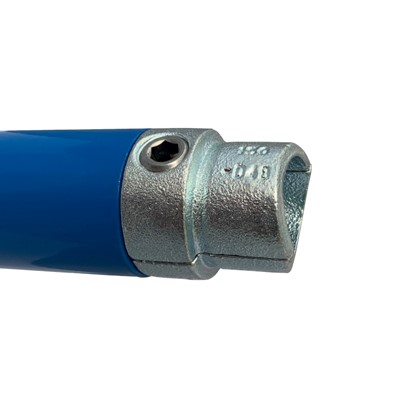

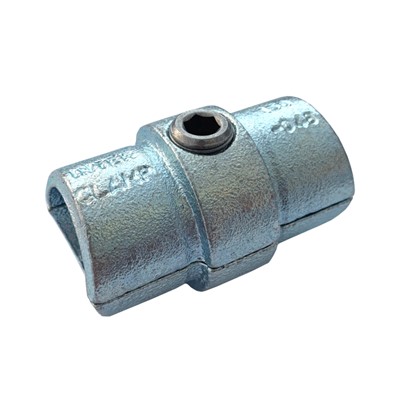

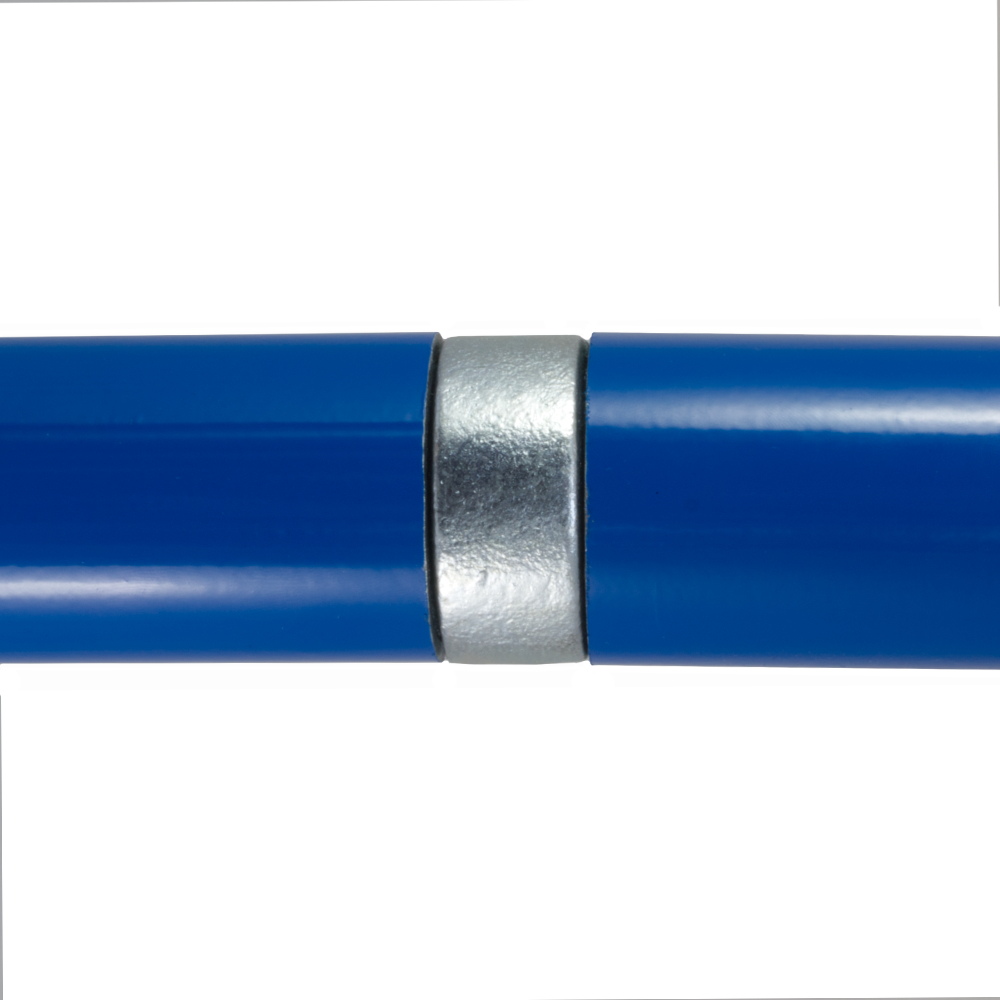

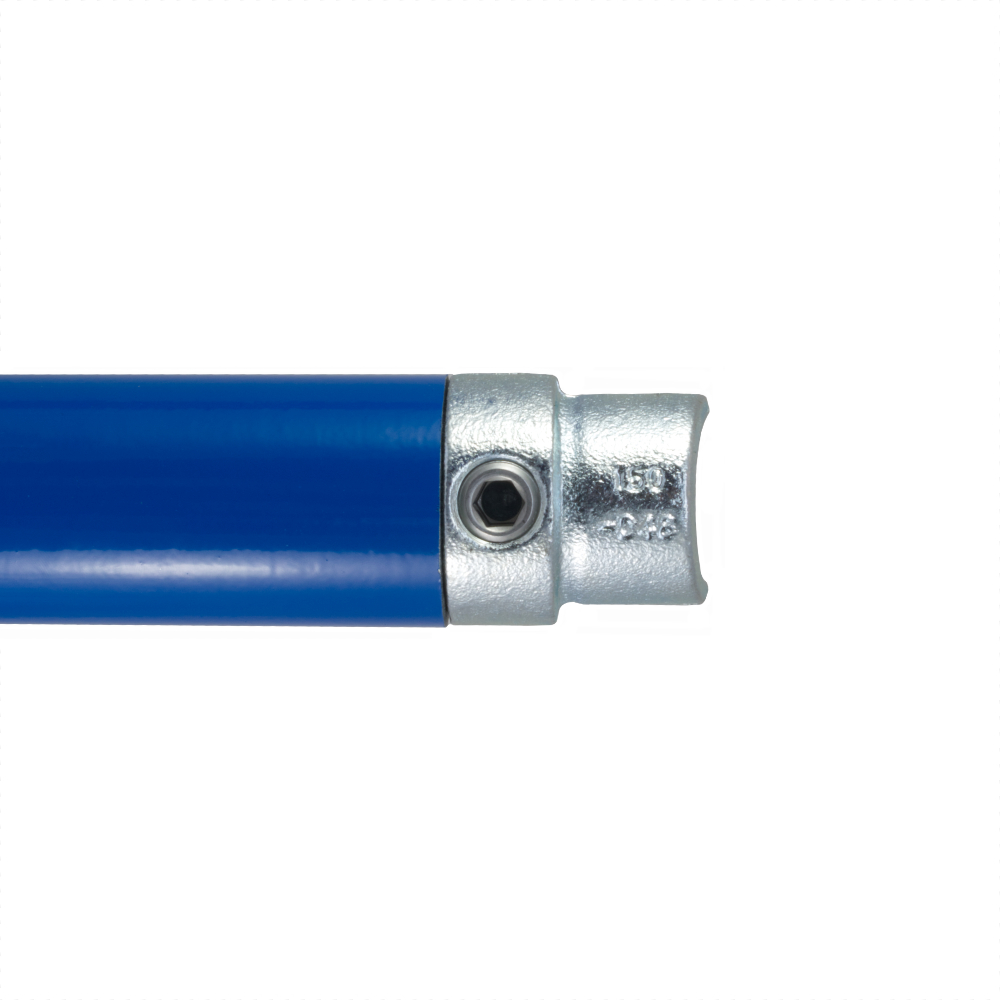

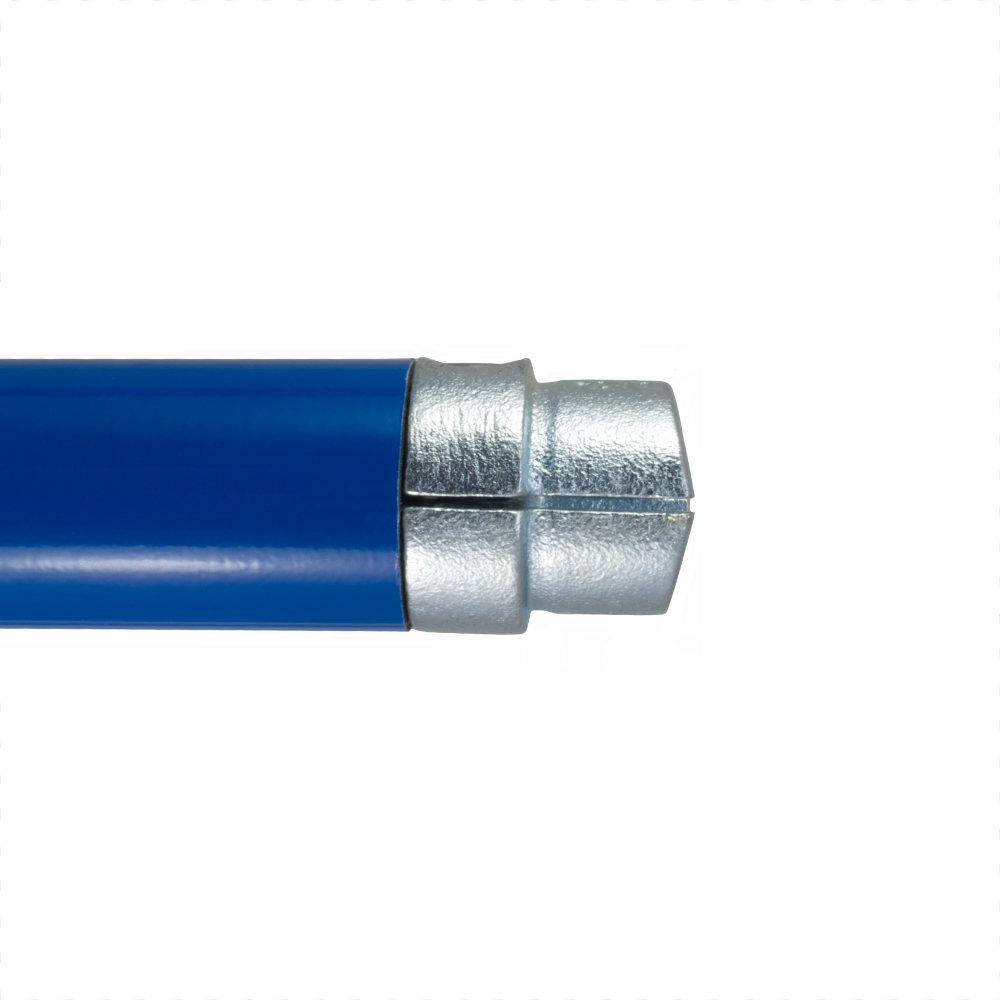

A straight fitting for joining tubes of the same size. This fitting can only be used for 3.25mm wall thickness tube (1”, 1 1/4” & 1 1/2” BS EN 10255, formerly BS 1387, medium weight) and must not be used as a load bearing joint, particularly for tensile loads. Type 149, which has superior load characteristics, may sometimes be used as an alternative.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

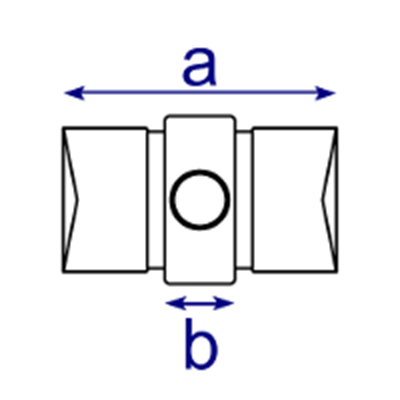

Dimensions Image 1 - 150 - Internal Expanding Joint

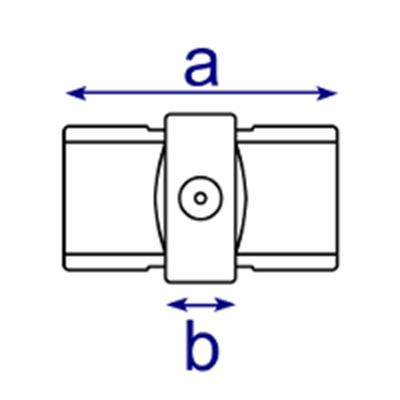

Dimensions Image 2 - 150 - Internal Expanding Joint
Tamaño a (mm) b (mm) Peso (Kg) Box Qty* GTIN / EAN No
  B34   78   20   0.24   115   5060511021180
  C42   78   20   0.36   100   5060511021197
  D48   78   20   0.43   100   5060511021203

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
