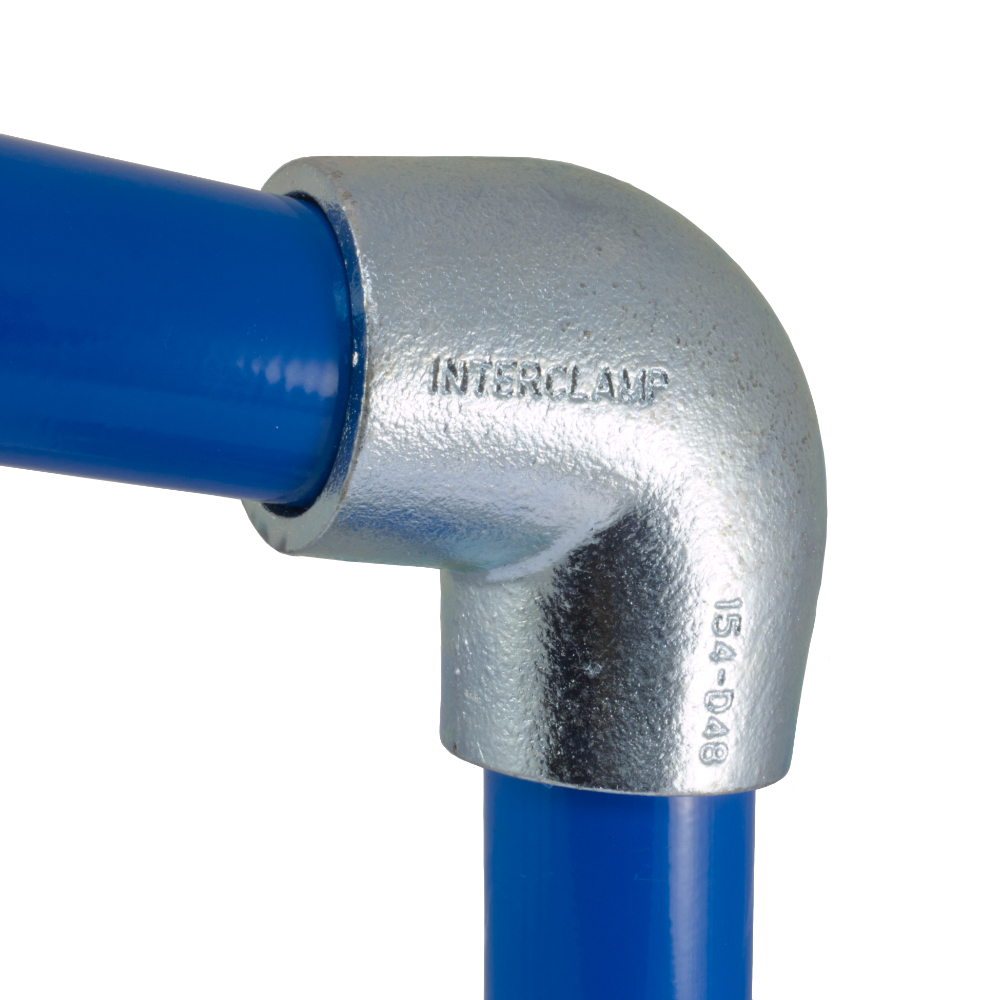

154 - Codo pendiente (0° - 11°)

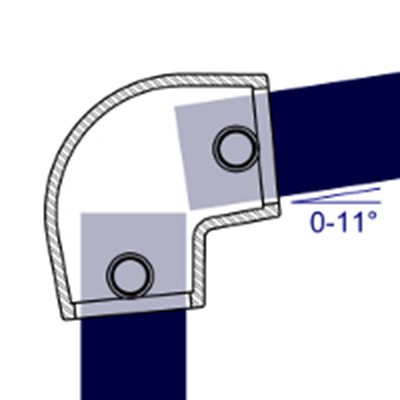

Junta de ángulo ajustable para pendientes de 0 ° a 11 °, que se usa a menudo cuando el riel superior se encuentra con el extremo vertical en sitios inclinados.
Consulte también nuestra gama de accesorios de lavado Interclamp® Assist para ayudar a cumplir con la Ley de Discriminación por Discapacidad (DDA) y el Reglamento de Construcción Parte M: 2004.
Angle joint adjustable for slopes from 0° to 11°, often used where top rail meets end upright on sloping sites.
Please also see our Interclamp® Assist range of flush fittings to help compliance with the Disability Discrimination Act (DDA) and the Building Regulations Part M:2004.

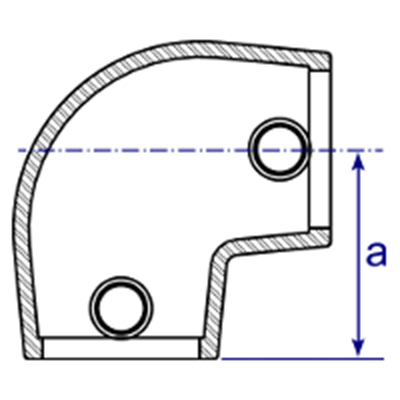

De datos del producto y dimensiones
| Tamaño | a (mm) | Peso (kg) | Box Qty* | Part No |
| B34 | 46 | 0.43 | 72 | 154-B34 |
| C42 | 60 | 0.65 | 35 | 154-C42 |
| D48 | 68 | 0.84 | 26 | 154-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
