161 - Cruce a través del conector

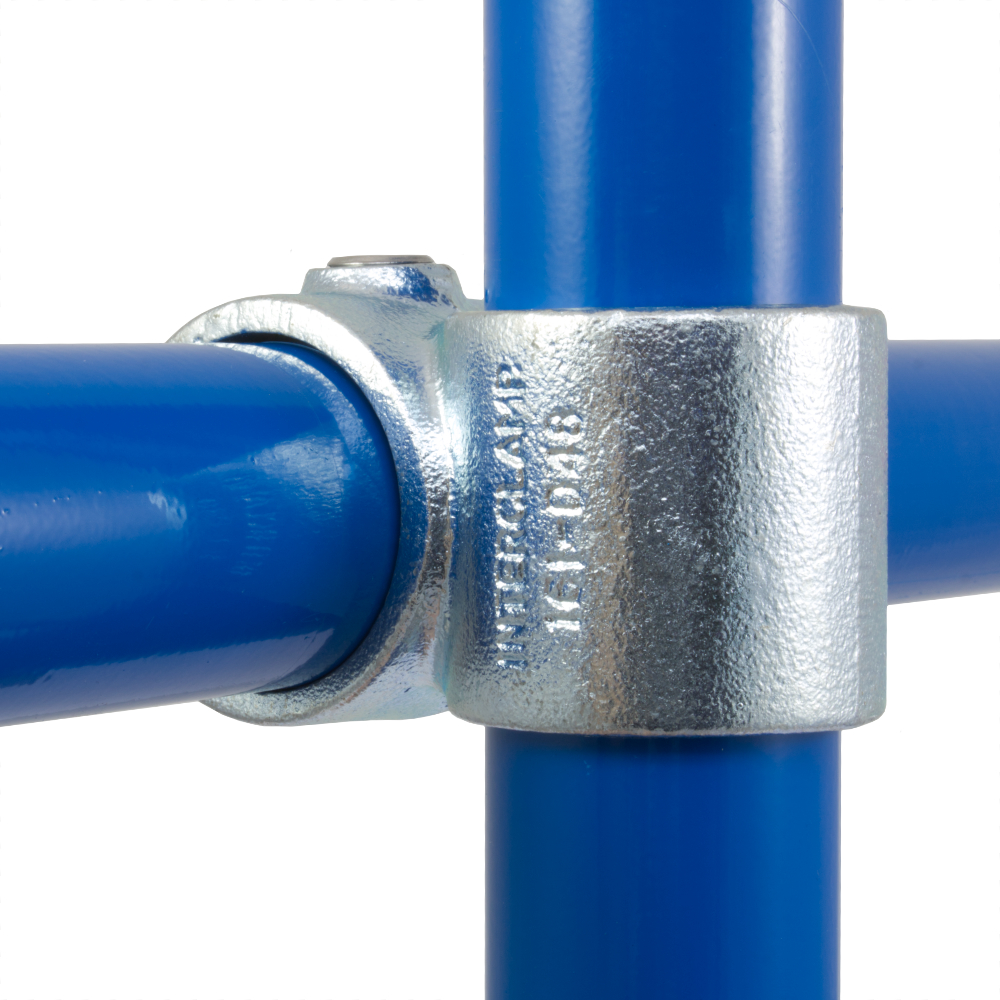

Diseñado para formar una unión cruzada de 90 ° entre dos tubos, este accesorio puede reducir la necesidad de cortar en rieles horizontales. Para agregar a las estructuras existentes, los tipos 137 y 160 a menudo se pueden usar como alternativas.

Designed to form a 90° crossover joint between two tubes, this fitting can reduce the need for cutting on horizontal rails. To add to existing structures, types 137 and 160 can often be used as alternatives.

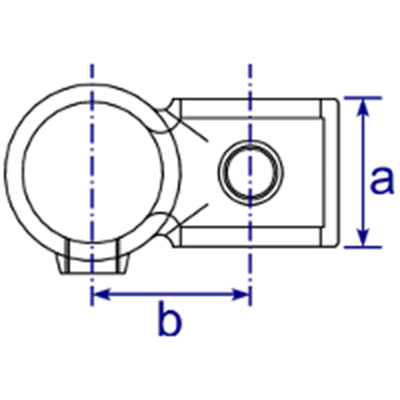

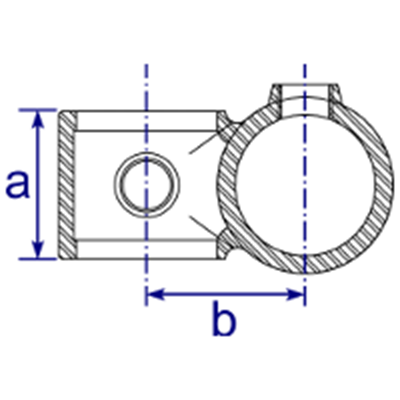

De datos del producto y dimensiones

Tamaño a (mm) b (mm) Peso (kg) Box Qty* Part No
  A27   31.5   38   0.22   192   161-A27
  B34   38.5   41   0.33   105   161-B34
  C42   46   49.5   0.50   48   161-C42
  D48   51   55   0.57   40   161-D48
  E60   61   67   0.89   24   161-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
