172M - Offset solo giratorio macho

172M - Offset solo giratorio macho

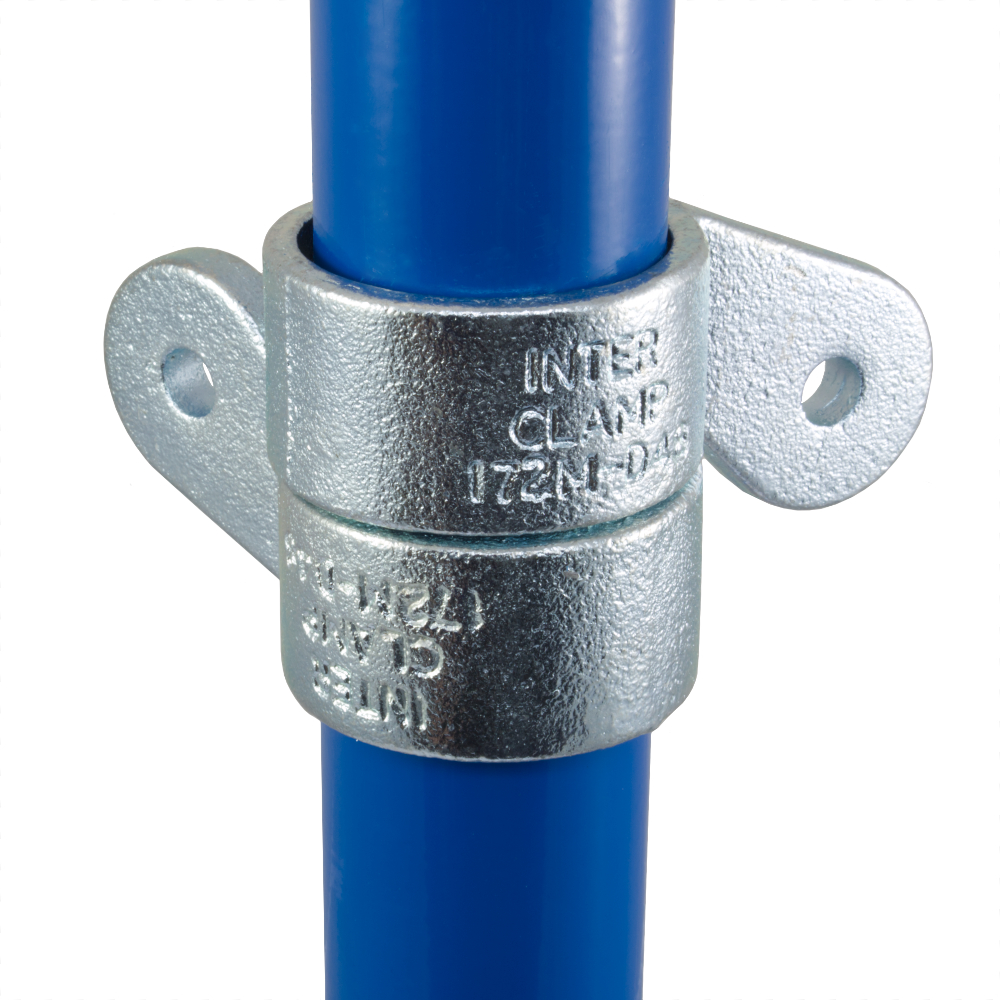

Advertencia: Para proporcionar suficiente estabilidad, no se deben hacer estructuras completas solo con accesorios giratorios. La imagen muestra 2 accesorios.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone. Image shows 2 fittings.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

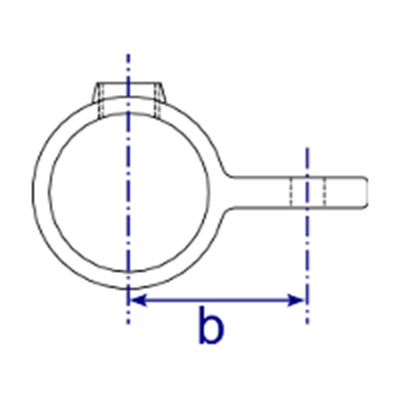

Dimensions Image 1 - 172M - Offset solo giratorio macho
Dimensions Image 2 - 172M - Offset solo giratorio macho
Tamaño a (mm) b (mm) Peso (kg) Box Qty* Part No
  C42   30   51   0.30   140   172M-C42
  D48   32   56   0.31   80   172M-D48

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.



Product Images

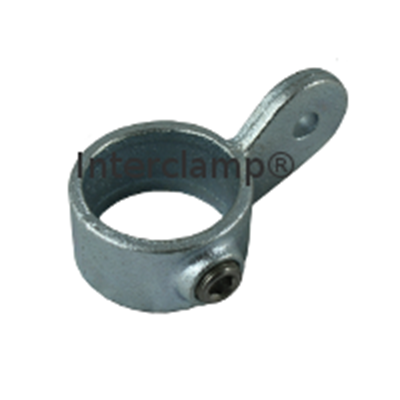

Product Images 1 - 172M - Offset solo giratorio macho

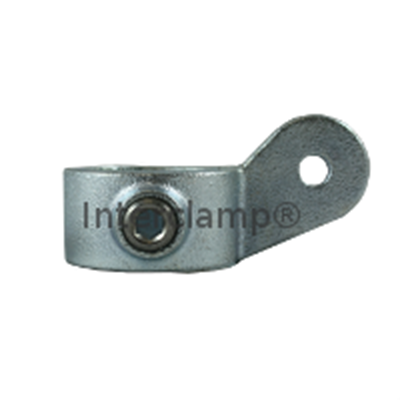

Product Images 2 - 172M - Offset solo giratorio macho
