Fácil de Especificar
Fácil de pedir
Rápido de montar
174M - Girar Tee parte masculina

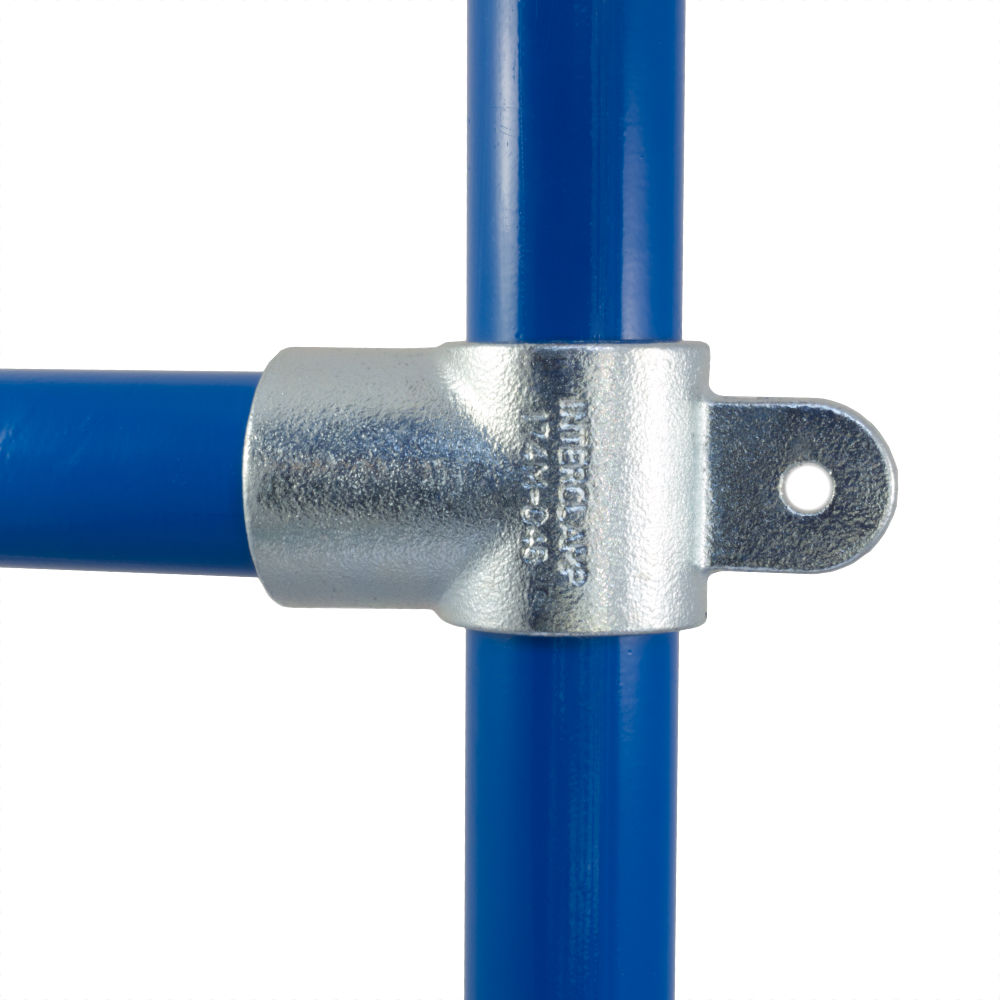

Camiseta corta con solapa. El tubo pasante (vertical en la foto) no se puede unir dentro del accesorio.
Advertencia: Para proporcionar suficiente estabilidad, no se deben hacer estructuras completas solo con accesorios giratorios.
Short tee with single lug. The through tube (vertical in photo) cannot be joined within the fitting.
Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

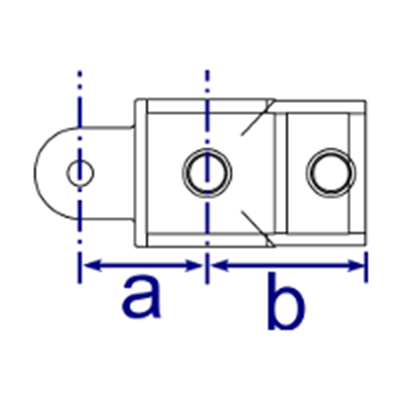

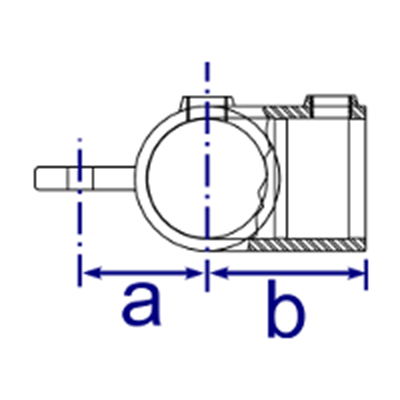

De datos del producto y dimensiones
| Tamaño | a (mm) | b (mm) | Peso (kg) | Box Qty* | Part No |
| D48 | 53 | 68 | 0.67 | 35 | 174M-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
