175M - Swivel Elbow Male Part

175M - Swivel Elbow Male Part

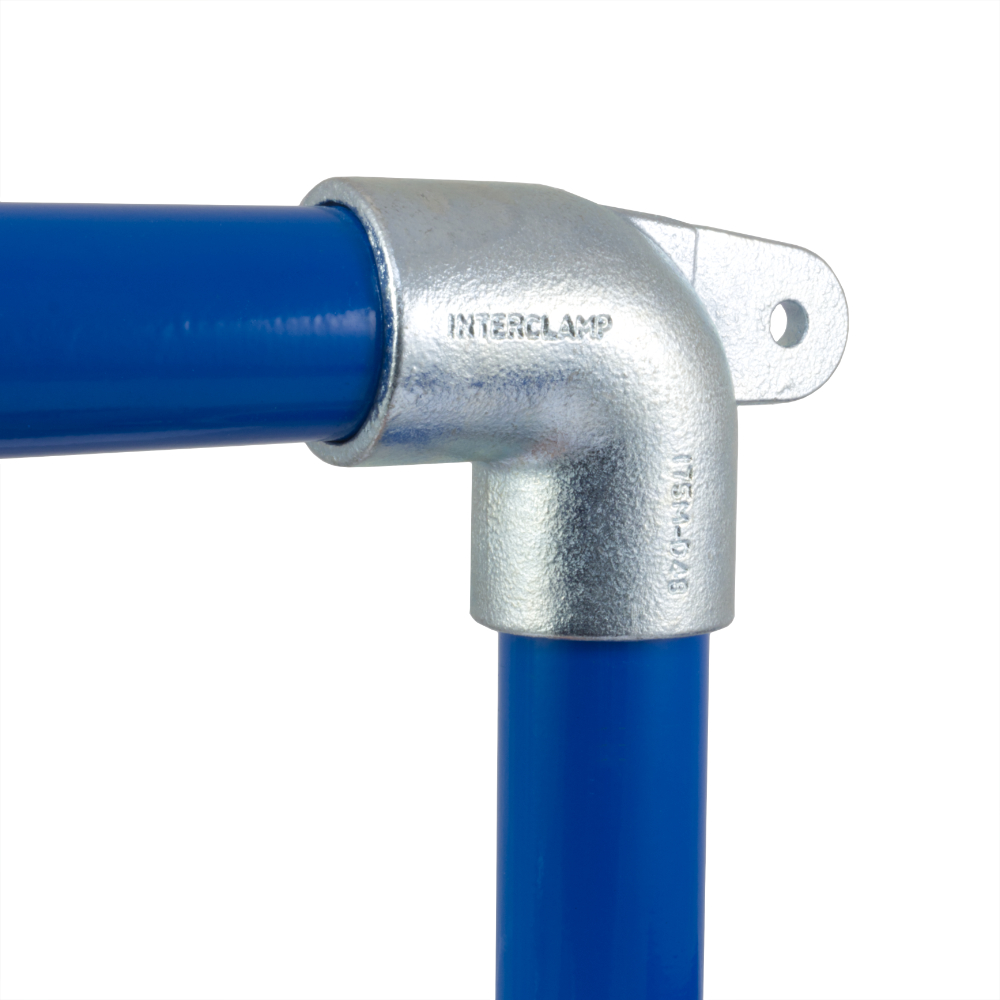

Codo de 90 ° con lengüeta simple.

Advertencia: Para proporcionar suficiente estabilidad, no se deben hacer estructuras completas solo con accesorios giratorios.

90° Elbow with single lug.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

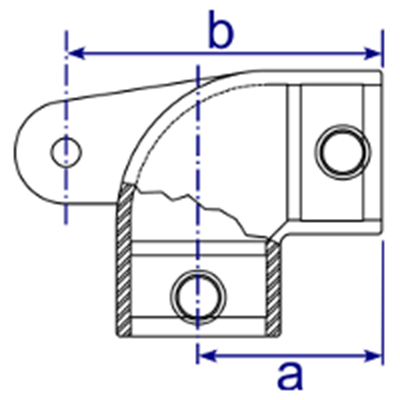

Dimensions Image 1 - 175M - Swivel Elbow Male Part
Tamaño a (mm) b (mm) Peso (kg) Box Qty* Part No
  D48   68   117   0.90   24   175M-D48

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
