182 - Gancho conector
Usualmente se usa donde las cadenas necesitan ser removidas fácilmente para el acceso. El tubo no se puede unir dentro de la conexión.
Usually used where chains need to be easily removed for access. The tube cannot be joined within the fitting.

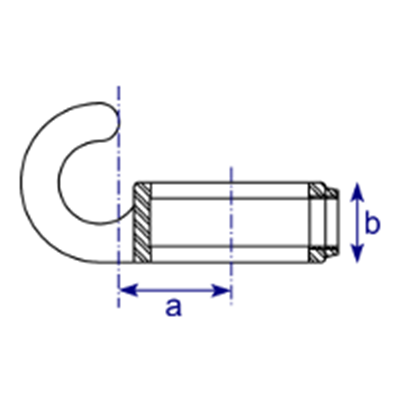

De datos del producto y dimensiones
| Tamaño | a (mm) | b (mm) | Peso (kg) | Box Qty* | Part No |
| A27 | 23.5 | 25 | 0.17 | 225 | 182-A27 |
| B34 | 34 | 25 | 0.19 | 225 | 182-B34 |
| C42 | 35 | 25 | 0.22 | 160 | 182-C42 |
| D48 | 41 | 25 | 0.22 | 140 | 182-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
