197 - Sign Clamp

197 - Sign Clamp

Although primarily designed to affix rectangular and square sign panels to posts, other uses may include fitting other panels and kick plates to uprights.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

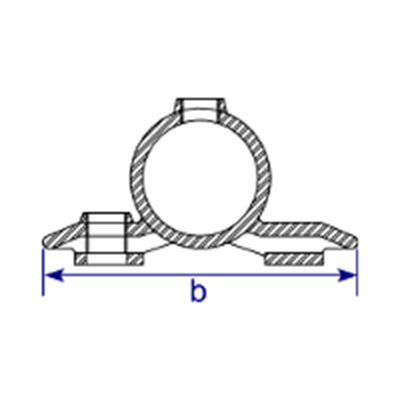

Dimensions Image 1 - 197 - Sign Clamp

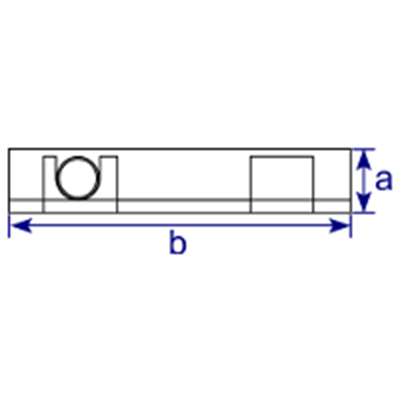

Dimensions Image 2 - 197 - Sign Clamp
Tamaño a (mm) b (mm) Peso (Kg) Box Qty* GTIN / EAN No
  D48   25   136   0.36   75   5060511022415

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
