198 - Soporte de anclaje doble

198 - Soporte de anclaje doble

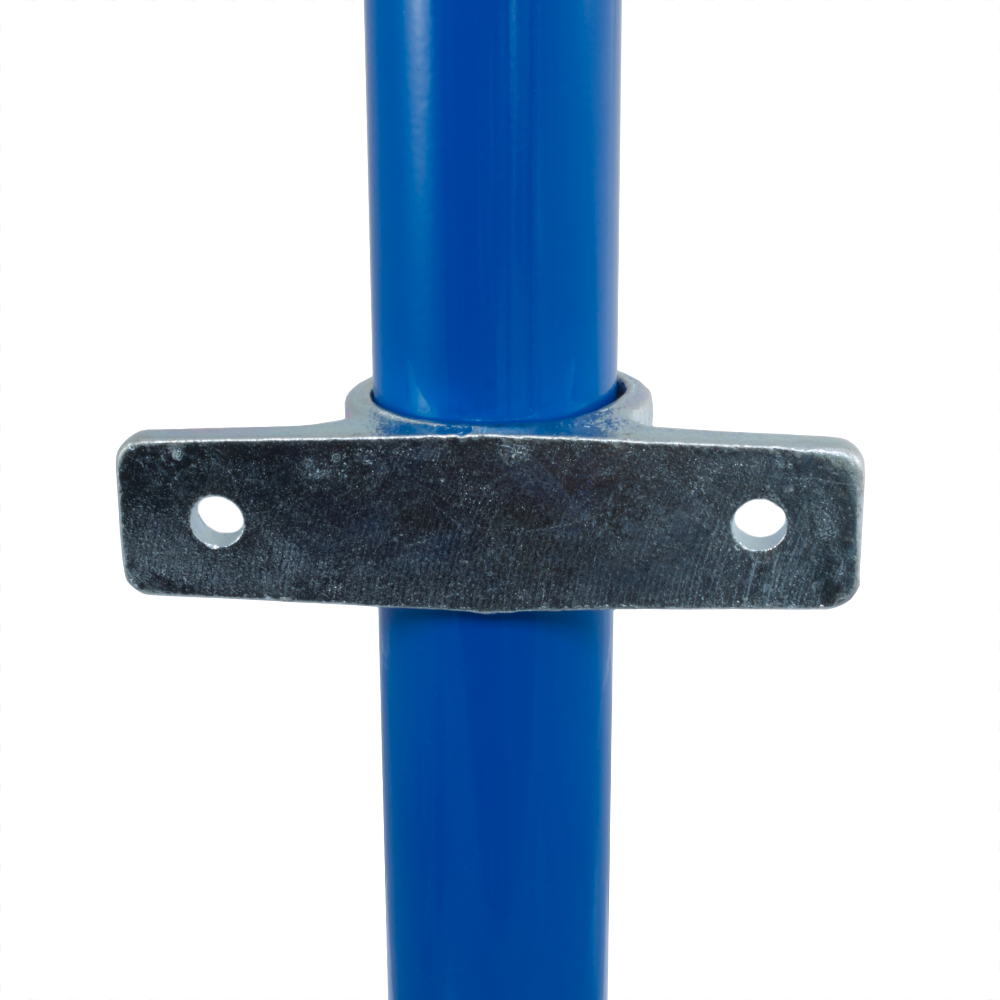

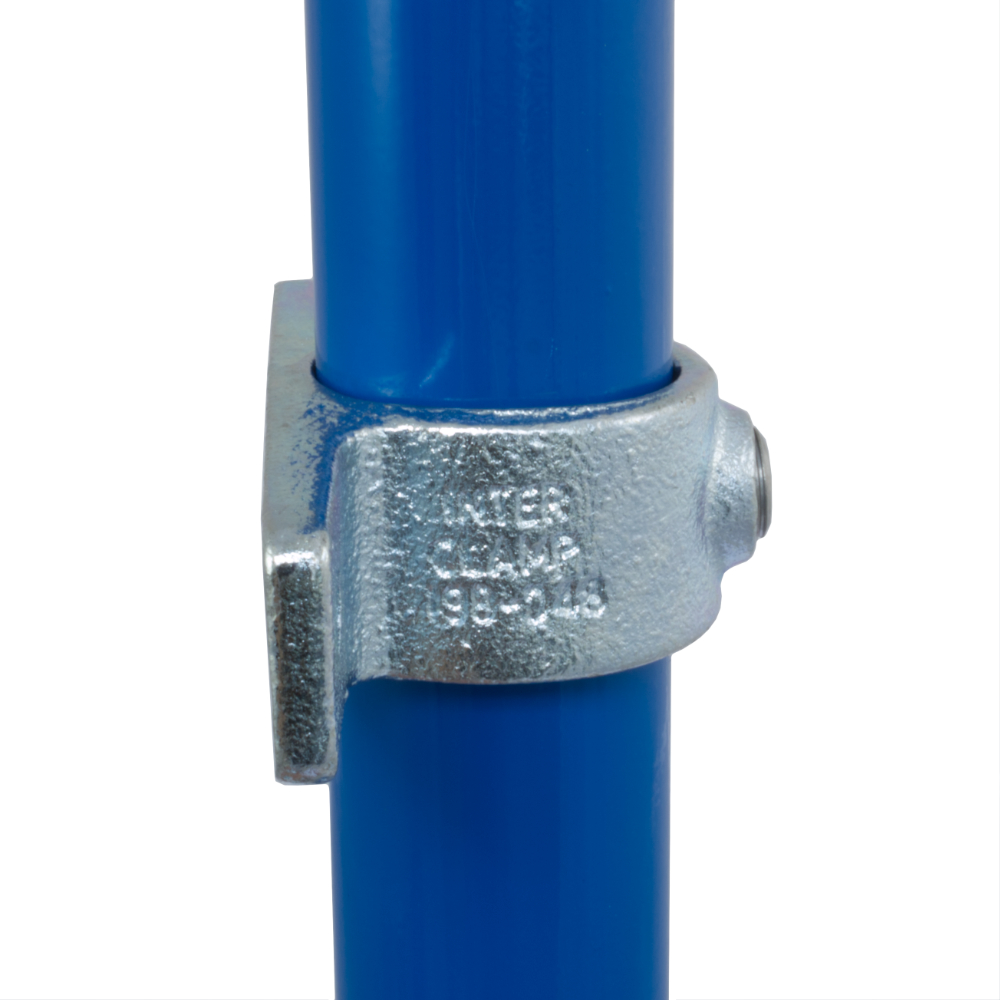

A menudo se utiliza para montar tablas prácticamente a ras de tubos. Los orificios de fijación se adaptan a una amplia gama de anclajes de mampostería mecánicos y químicos comunes que deberíamos cotizar a pedido. El tubo no se puede unir dentro de la conexión.

Often used for mounting boards practically flush with tubes. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. The tube cannot be joined within the fitting.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

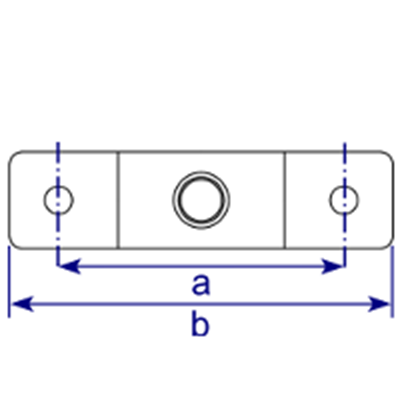

Dimensions Image 1 - 198 - Soporte de anclaje doble

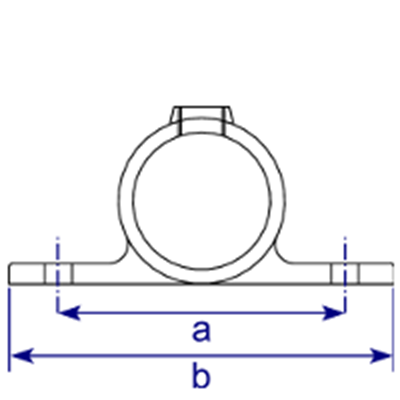

Dimensions Image 2 - 198 - Soporte de anclaje doble
Tamaño a (mm) b (mm) Peso (kg) Box Qty* Part No
  B34   86   120   0.30   142   198-B34
  C42   95   130   0.40   104   198-C42
  D48   104   140   0.47   74   198-D48

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
