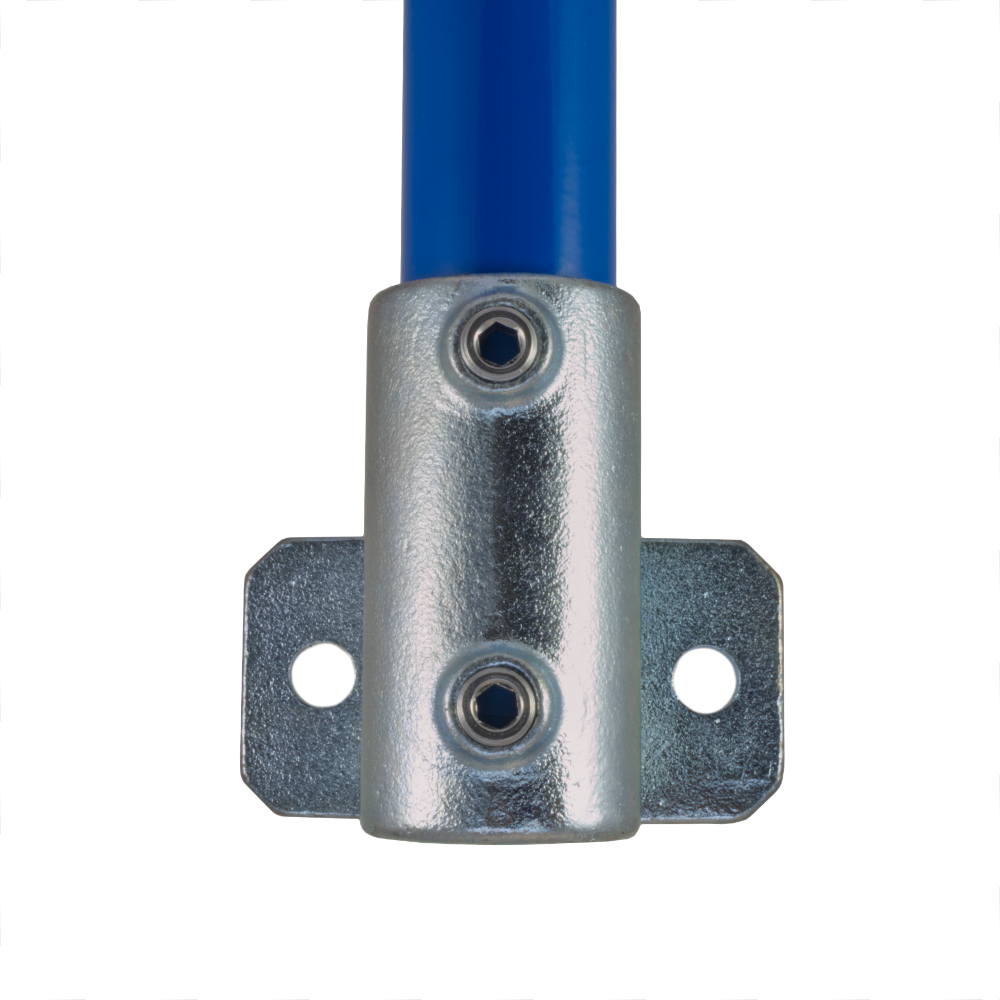

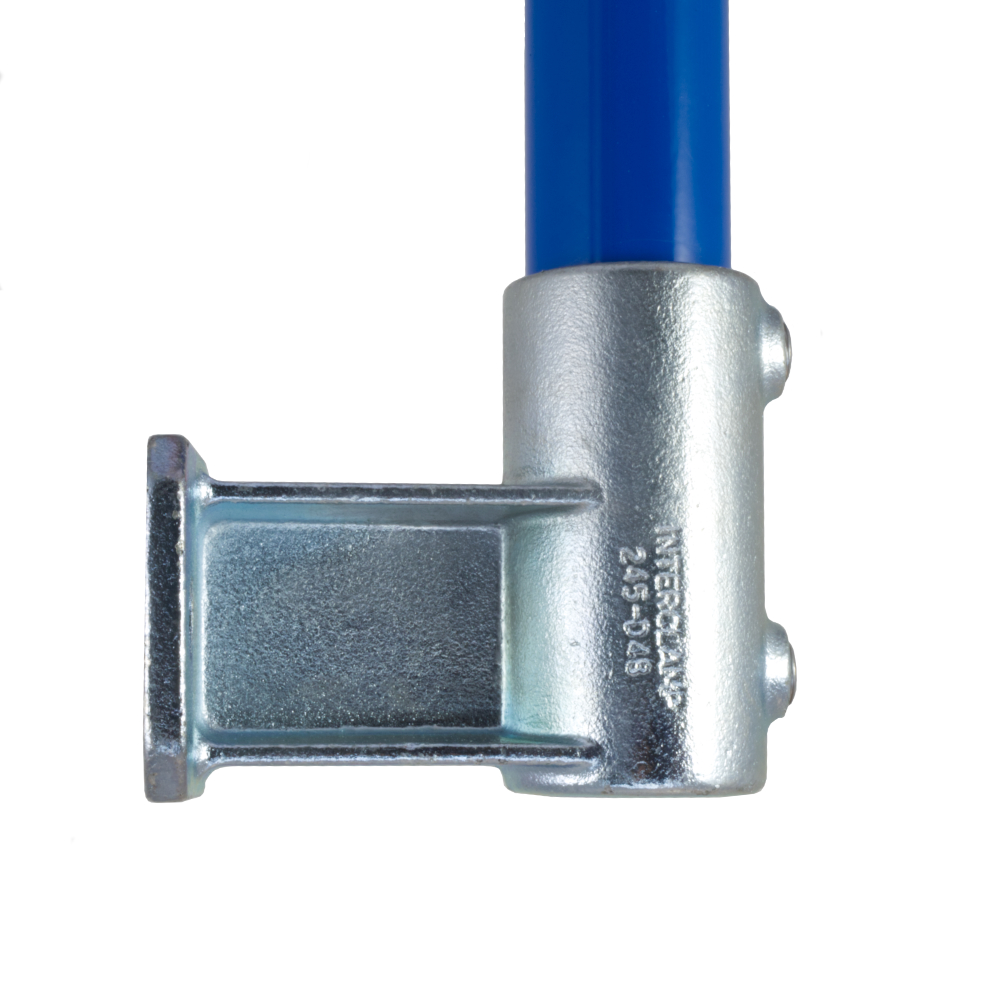

245 - Soporte lateral resistente (Base horizontal)
Diseñado para ser intercambiable con las bases estándar de bolas soldadas tradicionales, este accesorio tiene un desplazamiento extendido cuando se compara con el tipo 145. Los orificios de fijación se adaptan a una amplia gama de anclajes de mampostería mecánica y química comunes que deberíamos cotizar a pedido.
En forma estándar, el tubo no puede pasar a través de la parte inferior de la conexión, aunque la conexión puede modificarse para acomodarlo a un costo adicional.
Designed to be interchangeable with traditional welded ball standard bases, this fitting has an extended offset when compared with type 145. Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request.
In standard form, the tube cannot pass through the bottom of the fitting, although the fitting may be modified to accommodate this at extra cost.

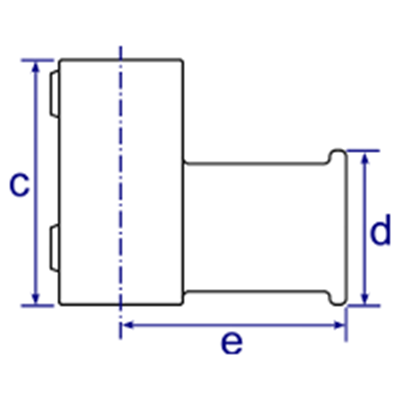

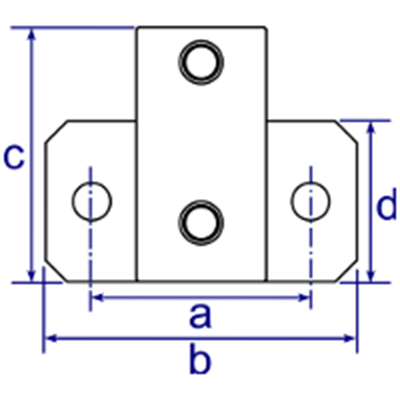

De datos del producto y dimensiones
| Tamaño | a (mm) | b (mm) | c (mm) | d (mm) | e (mm) | Peso (kg) | Box Qty* | Part No |
| D48 | 102 | 145 | 119 | 75 | 110 | 2.00 | 8 | 245-D48 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
