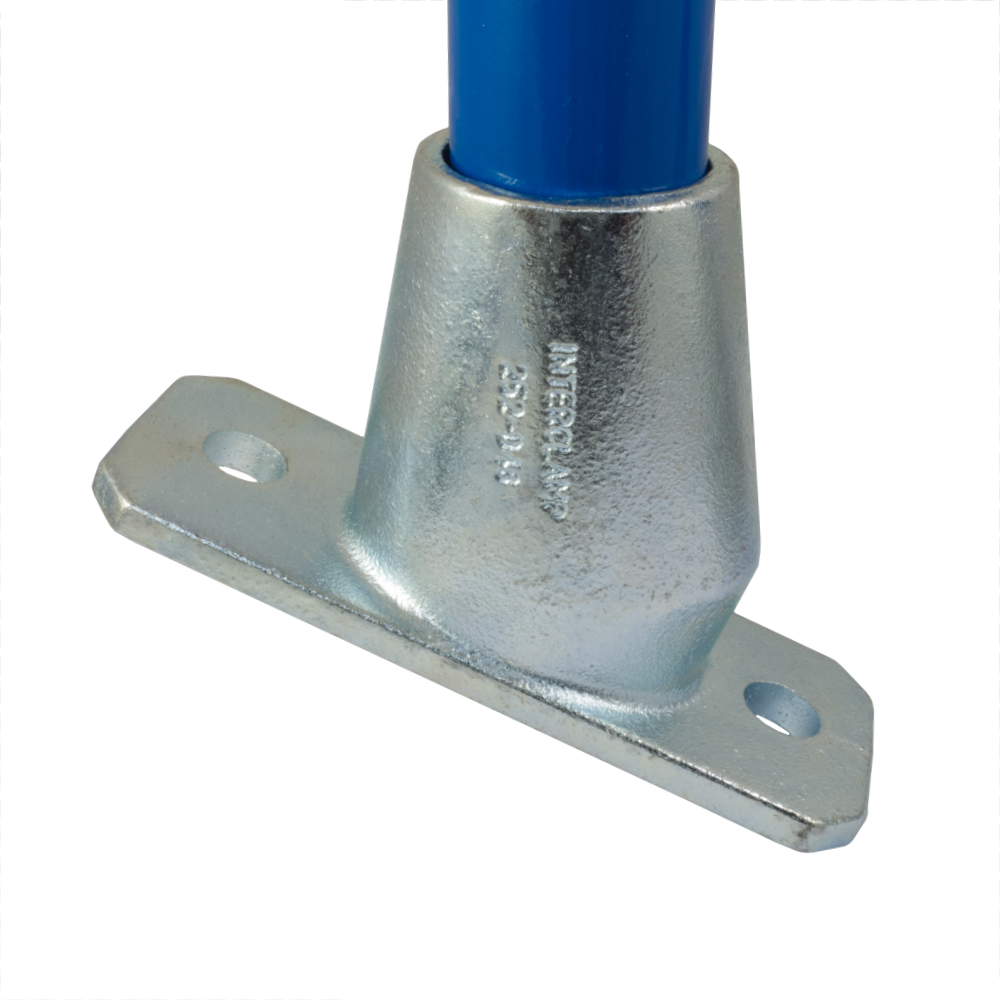

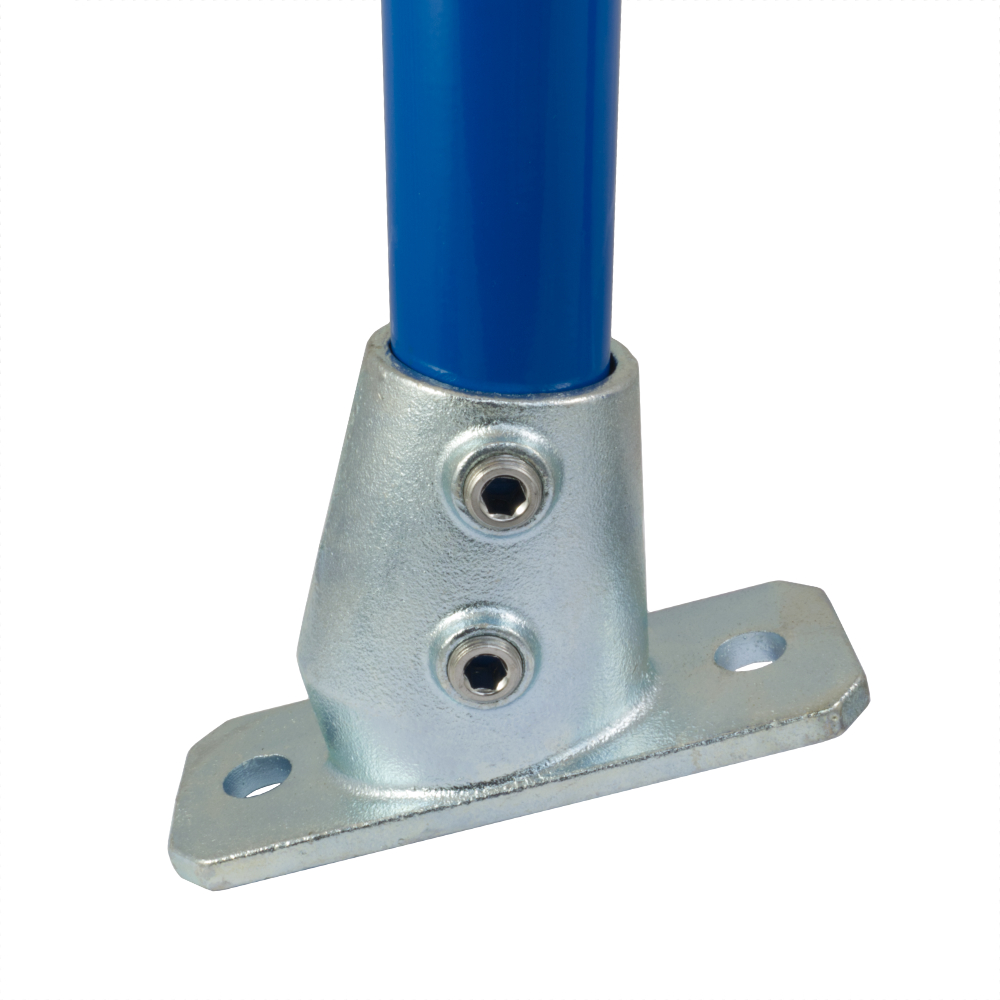

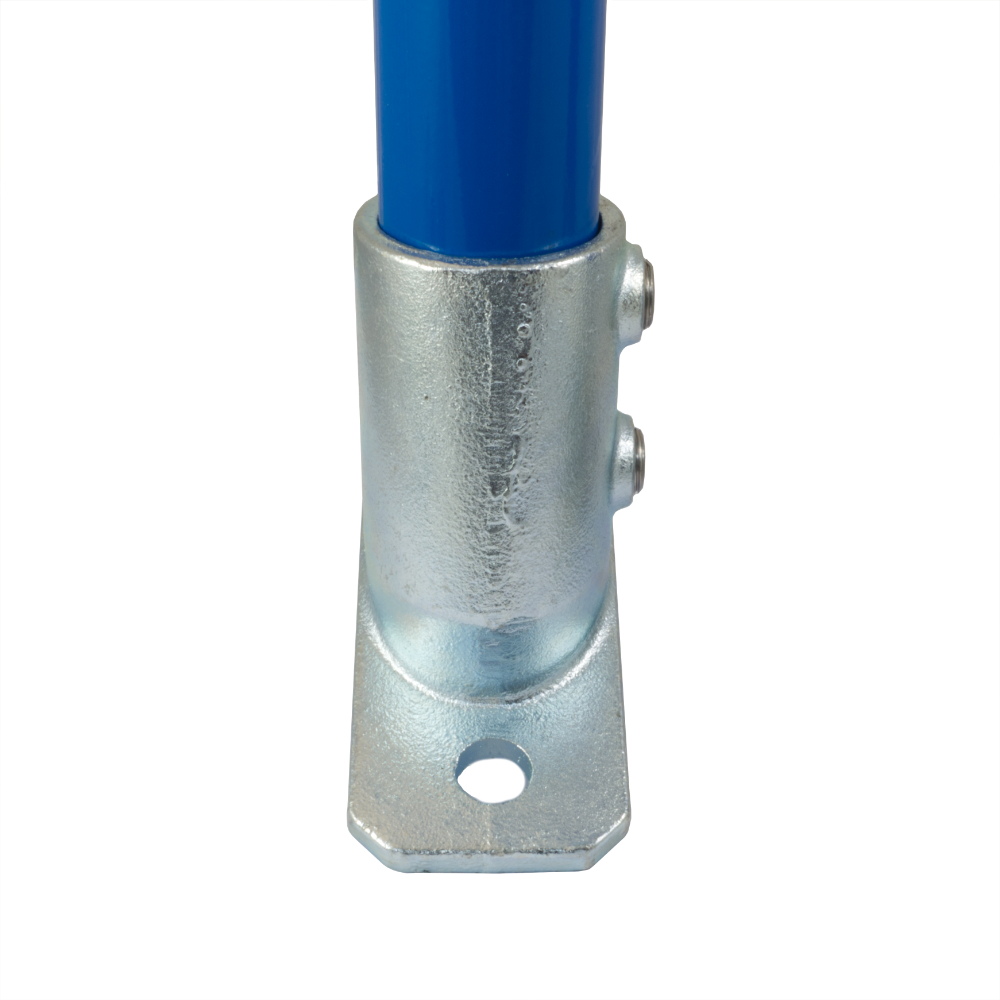

252 - Brida de la base del talud (11°-29°)

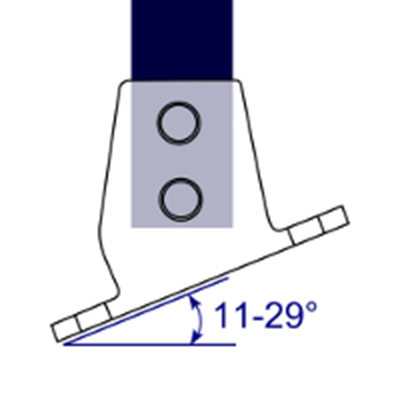

Brida de base para sitios inclinados, ajustable de 11 ° a 29 °. Como los orificios de fijación en la base no pueden fijarse en línea con la carga aplicada, solo están diseñados para cargas ligeras o estructuras que estén suficientemente apoyadas en virtud de su diseño. Donde se requiere una mayor carga, normalmente se usa el tipo 132, con el tubo vertical doblado al ángulo requerido.

Los orificios de fijación se adaptan a una amplia gama de anclajes de mampostería mecánicos y químicos comunes que deberíamos cotizar a pedido. Las dimensiones de la base están diseñadas para ser compatibles con muchas bases estándares tradicionales de bolas soldadas para permitir un fácil intercambio.

Base flange for sloping sites, adjustable from 11° to 29°. As the fixing holes in the base cannot be fixed in line with the applied load, it is only intended for light loads or structures which are sufficiently supported by virtue of their design. Where a greater load is required, type 132 is normally used, with the upright tube bent to the required angle.

Fixing holes suit a wide range of common mechanical and chemical masonry anchors which we should be pleased to quote for on request. The dimensions of the base are designed to be compatible with many traditional welded ball standard bases to allows easy interchangeability.



De datos del producto y dimensiones

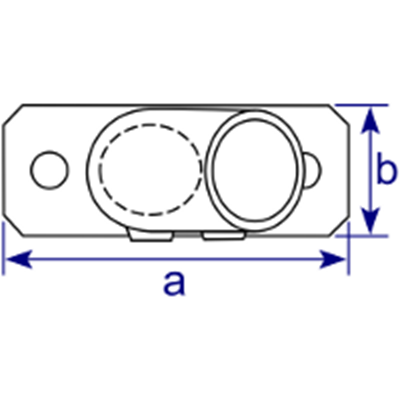

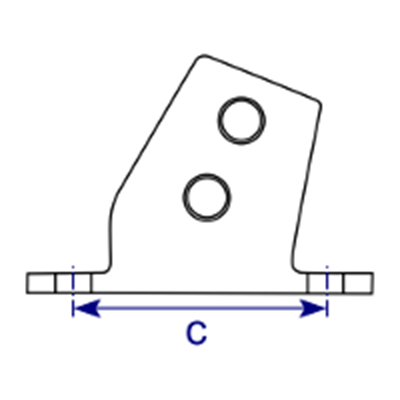

Tamaño a (mm) b (mm) c (mm) Peso (kg) Box Qty* Part No
  D48   172   65   126   1.22   20   252-D48

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
