256 - Slope Cross -Middle Rail (11°-29°)

256 - Slope Cross -Middle Rail (11°-29°)

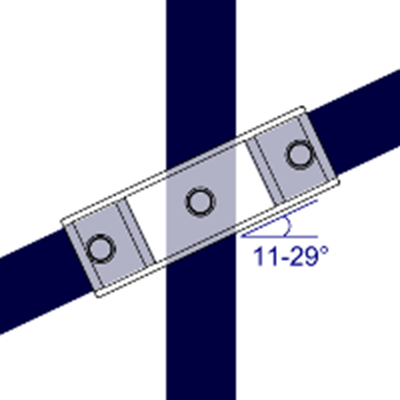

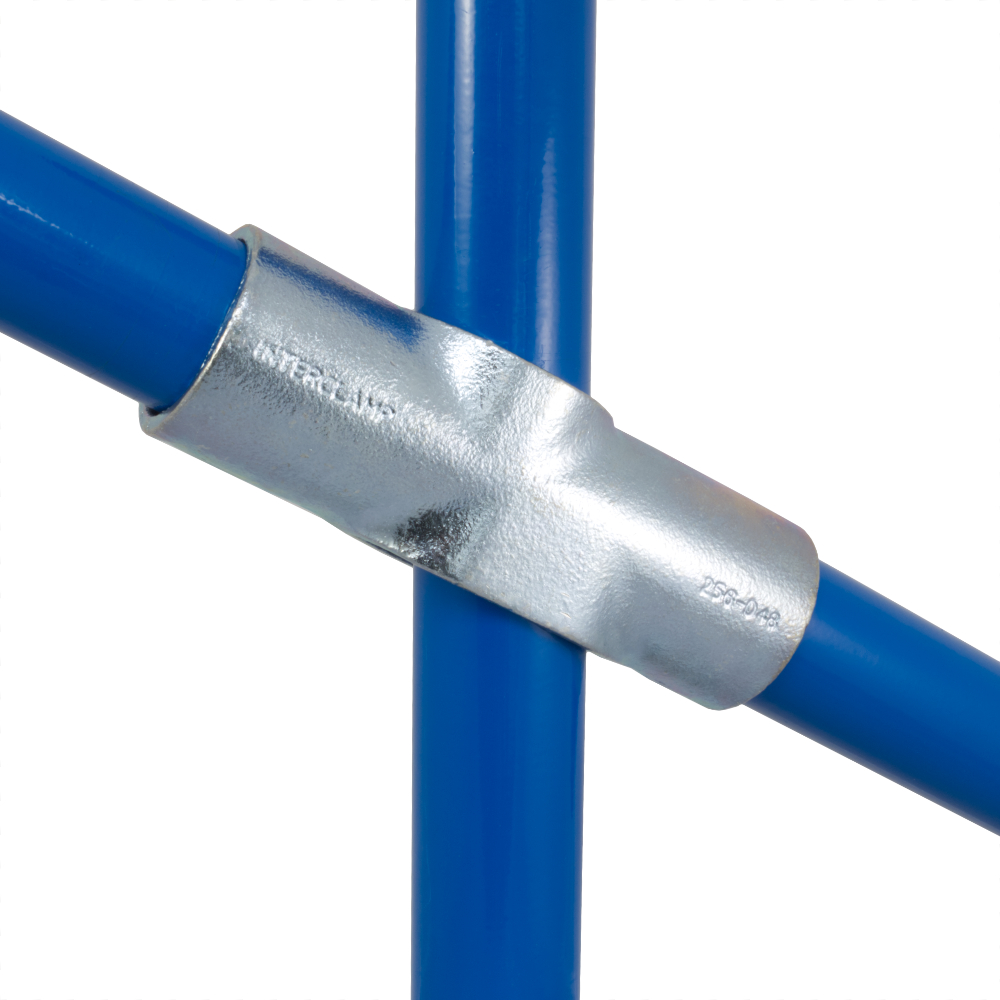

Adjustable for slopes from 11° to 29°, often used between middle rail and uprights on sloping sites and often paired with type 253 or type 255. The through tube (vertical in photo) cannot be joined within the fitting.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

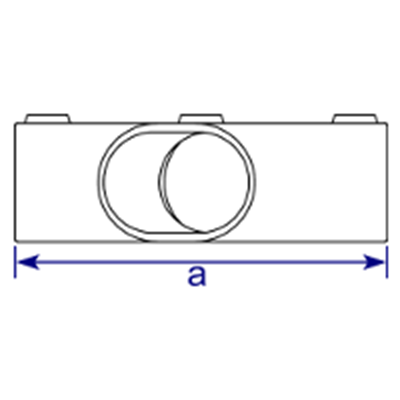

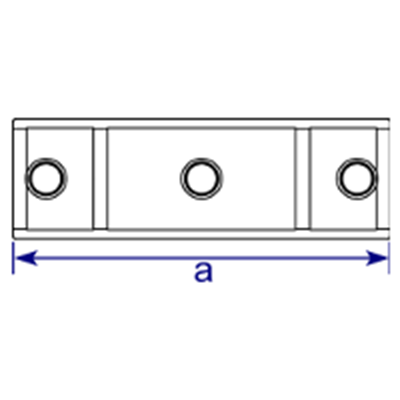

Dimensions Image 1 - 256 - Slope Cross -Middle Rail (11°-29°)
Dimensions Image 2 - 256 - Slope Cross -Middle Rail (11°-29°)
Dimensions Image 3 - 256 - Slope Cross -Middle Rail (11°-29°)
Tamaño a (mm) Peso (Kg) Box Qty* GTIN / EAN No
  D48   187   1.00   22   5060511022613

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
