725 - Ayudar codo expansivo

725 - Ayudar codo expansivo

Codo de 90 ° para adaptarse a 1 1/4 "tubo de peso medio según BS EN 10255 (anteriormente BS 1387)

Alternativamente, se puede usar con un Interclamp® 731 para terminar el pasamanos a una pared.

90° elbow to suit 1 1/4" medium weight tube to BS EN 10255 (formerly BS 1387)

Alternatively can be used with an Interclamp® 731 to terminate handrail to a wall.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

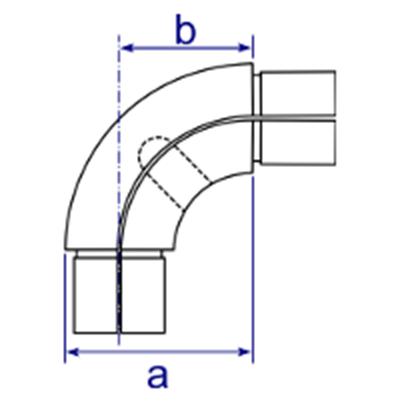

Dimensions Image 1 - 725 - Ayudar codo expansivo
Tamaño a (mm) b (mm) Peso (kg) Box Qty*
  C42   72   51   0.83   35

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
