729 - Ayudar Expansible soporte de esquina externo

729 - Ayudar Expansible soporte de esquina externo

Expansión del soporte de esquina de 90 ° para esquinas externas en relación con el poste vertical. Para adaptarse a 1 1/4 "tubo de peso medio según BS EN 10255 (anteriormente BS 1387).

Expanding 90° corner bracket for external corners relative to the upright post. To suit 1 1/4" medium weight tube to BS EN 10255 (formerly BS 1387).

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

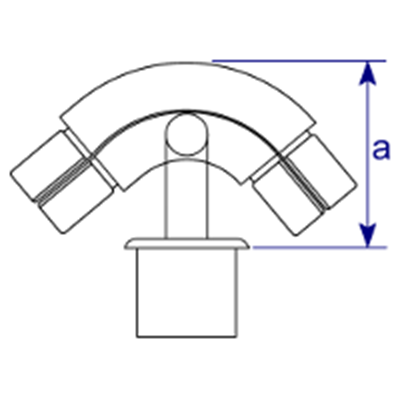

Dimensions Image 1 - 729 - Ayudar Expansible soporte de esquina externo

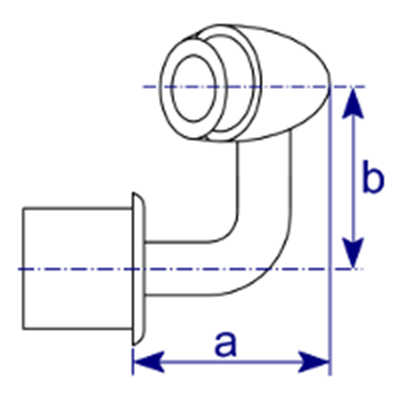

Dimensions Image 2 - 729 - Ayudar Expansible soporte de esquina externo
Tamaño a (mm) b (mm) Peso (kg) Box Qty*
  C42   79.7   80   1.28   25

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
