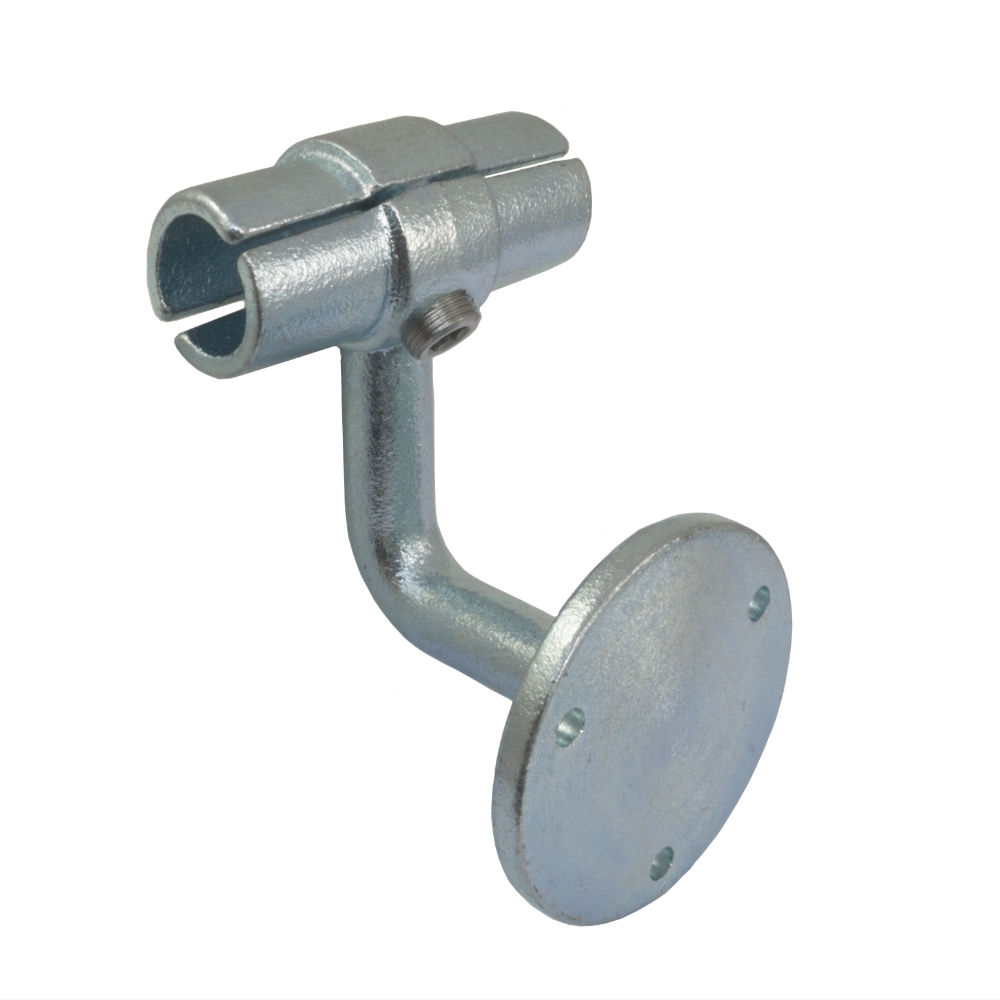

745 - Ayudar Expansible soporte de pared

745 - Ayudar Expansible soporte de pared

Para fijar el pasamanos a una pared en cualquier ángulo.

To attach the handrail to a wall at any angle.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

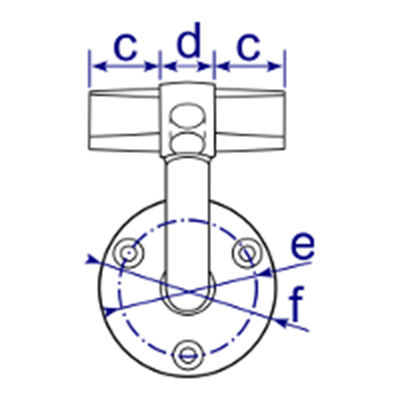

Dimensions Image 1 - 745 - Ayudar Expansible soporte de pared

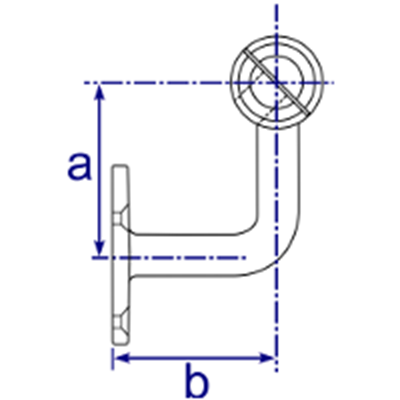

Dimensions Image 2 - 745 - Ayudar Expansible soporte de pared
Tamaño a (mm) b (mm) c (mm) d (mm) e (mm) Peso (kg) Box Qty*
  C42   80   76.5   32     63   0.98   32
  D48   -   -   -   -   -   1.13   30

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
