119 - Reduciendo Cruz (Riel Medio)

119 - Reduciendo Cruz (Riel Medio)

Junta de 90 °, utilizada a menudo entre rieles medios y montantes en sitios nivelados y con frecuencia emparejados con el tipo 101 o 104. El tubo pasante (vertical en la foto) no se puede unir dentro del accesorio.

90° joint, often used between middle rail and uprights on level sites and often paired with type 101 or 104. The through tube (vertical in photo) cannot be joined within the fitting.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

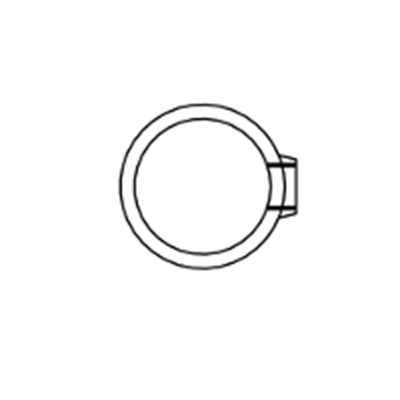

Dimensions Image 1 - 119 - Reduciendo Cruz (Riel Medio)

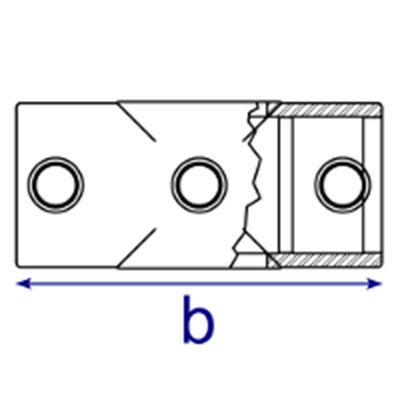

Dimensions Image 2 - 119 - Reduciendo Cruz (Riel Medio)
Tamaño b (mm) X Y Peso (kg) Box Qty* Part No
  C42/D48   122   C42   D48   0.65   35   119-C42D48

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.

Product Images

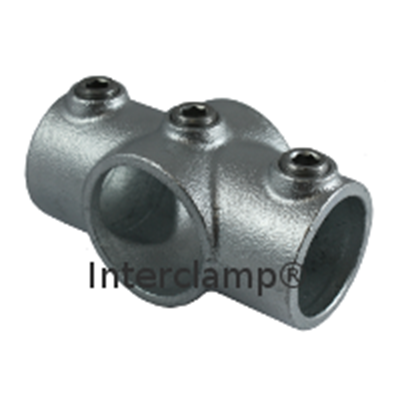

Product Images 1 - 119 - Reduciendo Cruz (Riel Medio)

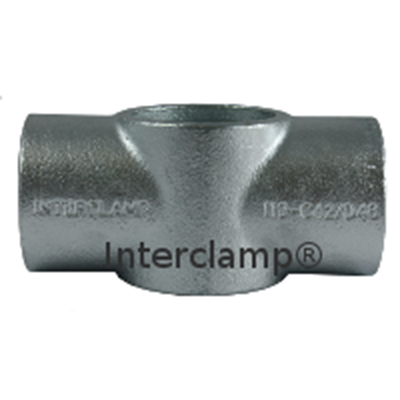

Product Images 2 - 119 - Reduciendo Cruz (Riel Medio)

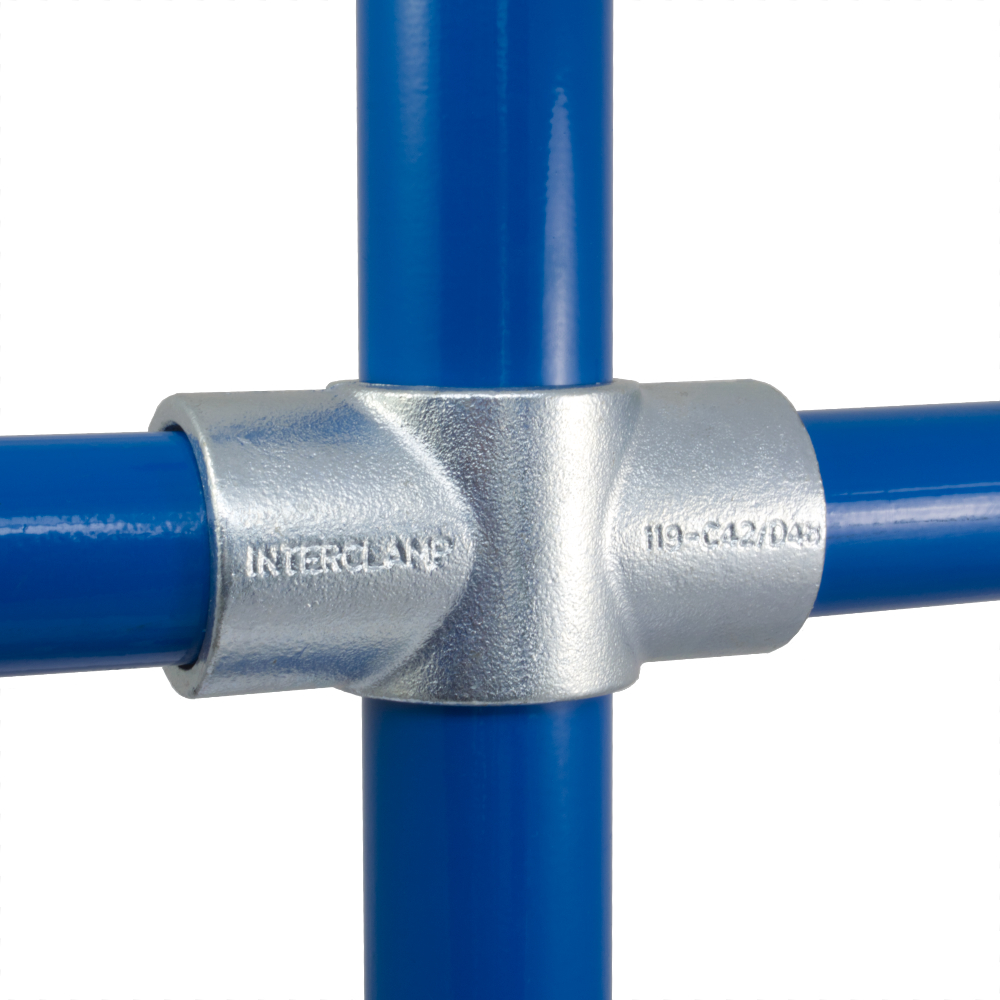

Product Images 3 - 119 - Reduciendo Cruz (Riel Medio)
