174 - Girar Tee

174 - Girar Tee

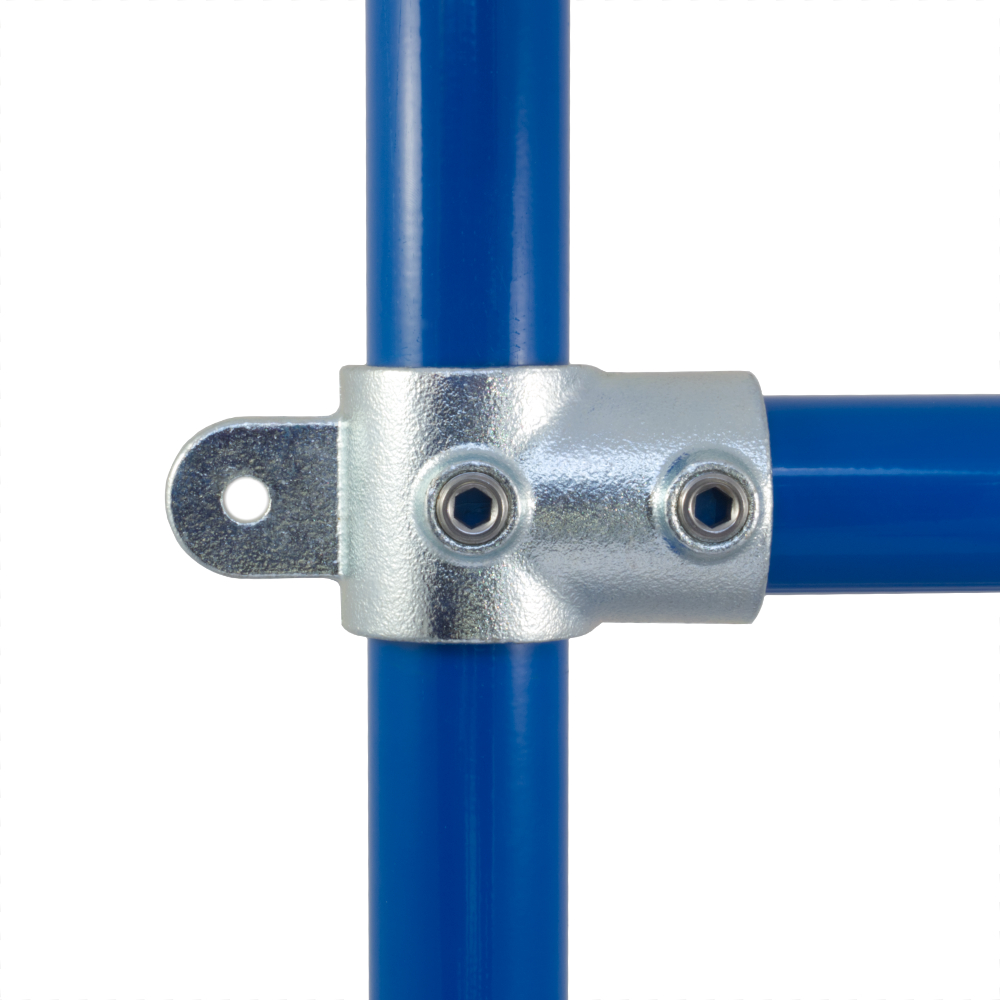

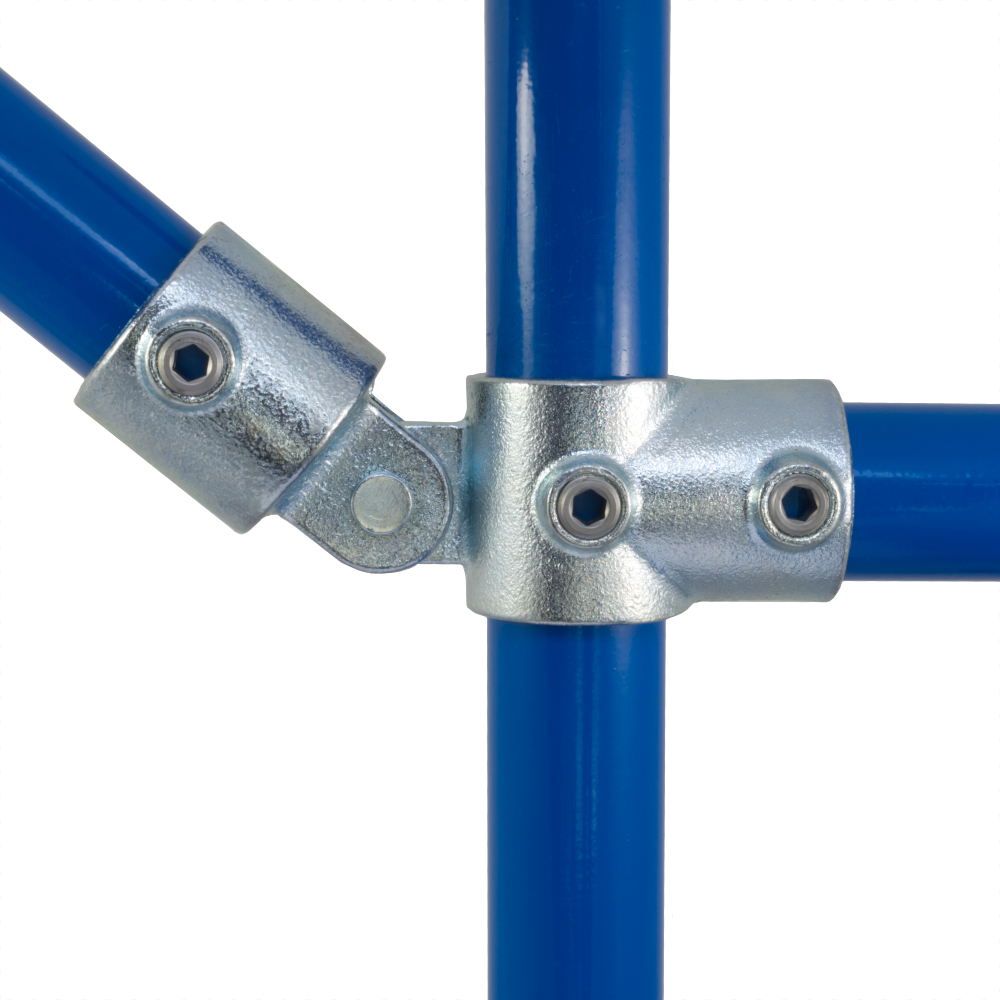

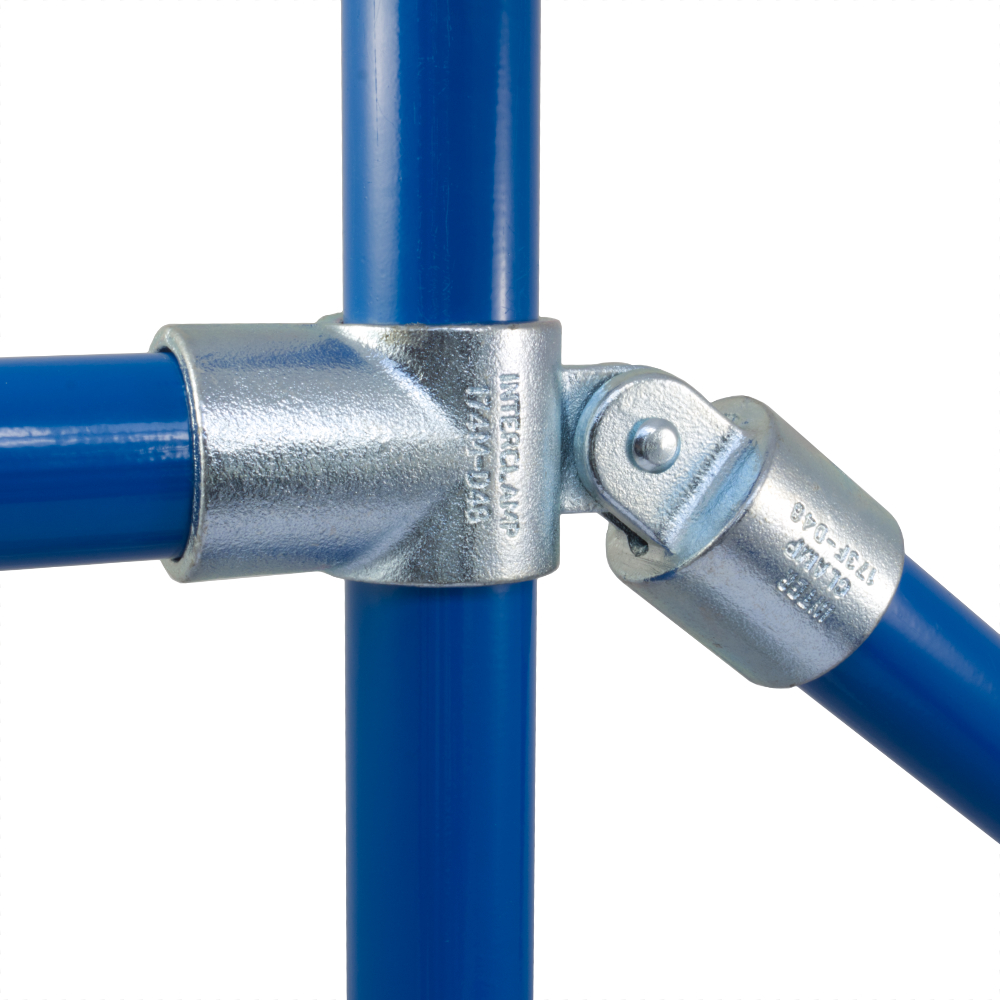

Un accesorio giratorio versátil, que se usa a menudo para tirantes y donde los rieles medios de la escalera se unen a las secciones de nivel. El tubo pasante (vertical en la foto) no se puede unir dentro del accesorio. El conjunto se remachan juntos, aunque los artículos se pueden suministrar por separado como 174M y 173F.

Advertencia: Para proporcionar suficiente estabilidad, no se deben hacer estructuras completas solo con accesorios giratorios.

A versatile swivel fitting, often used for braces and where staircase middle rails join level sections. The through tube (vertical in photo) cannot be joined within the fitting. The assembly is riveted together, although items can be supplied separately as 174M and 173F.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Gama de Conectores Imprimir < Anterior Proximo >

De datos del producto y dimensiones

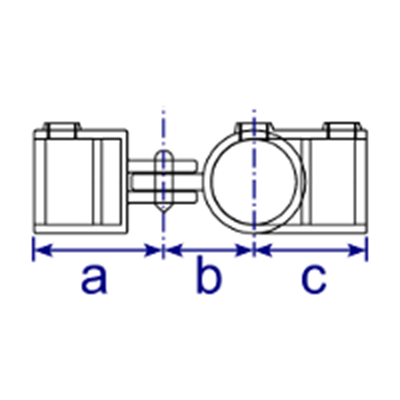

Dimensions Image 1 - 174 - Girar Tee

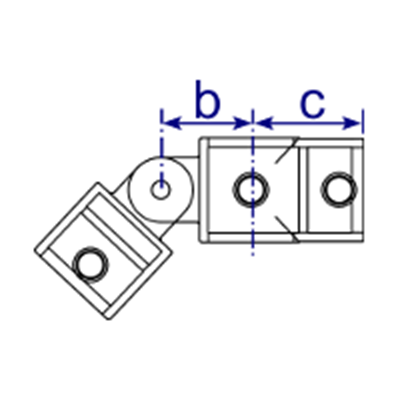

Dimensions Image 2 - 174 - Girar Tee
Tamaño a (mm) b (mm) c (mm) Peso (kg) Box Qty* Part No
  D48   77   53   68   1.22   20   174-D48

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
